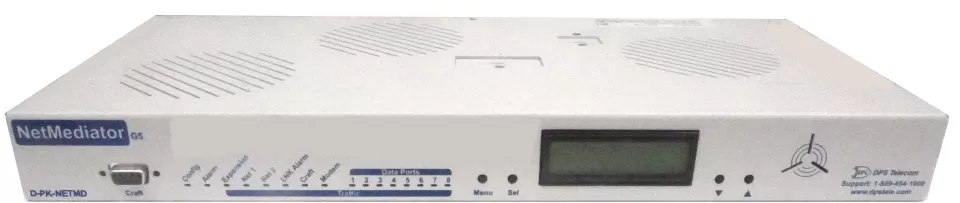

NetMediator G5

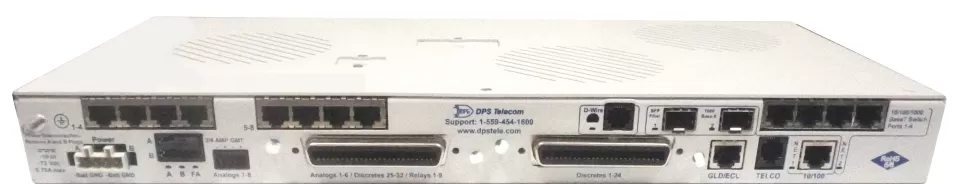

/products/rtu/d-pk-netmd/media/back-panel-960.png
/products/rtu/d-pk-netmd/media/back-panel-960.png
*Click an image to enlarge

The NetMediator G5 is a powerful, compact alarm collector that provides network managers with remote visibility of their IP network elements. And with redundant network connectivity, you will have a backup means of reporting.


Key Features

  • 8 analog alarms
  • 8 control relays
  • Monitors 32 alarm points and reports to T/Mon (LNX,NOC,SLIM, or MINI) via LAN and/or Dialup
  • Web browser access

With 32 ping alarms, 32 discrete alarms, 8 analog inputs, and 8 controls, the NetMediator is a versatile unit, ideal as a network monitoring solution.

If an element fails to respond to successive pings, or if anything goes wrong with the environmental controls, the NetMediator notifies your personnel using a variety of methods with a complete status message. Notification types include SNMP traps, pager, text message, email, and T/Mon. The unit also stores up to 100 events in its event log.

In addition to network and environmental alarms and controls, the NetMediator also acts as a terminal server for 6 serial ports, thereby eliminating the need for dedicated circuits and the recurring monthly costs associated with such transports.

To provision the NetMediator, you'll use the TTY interface to assign the unit an IP address. The integrated web browser allows you to monitor alarm status from any PC on your network. The entire configuration is saved on the NetMediator where it remains secure through power outages in non-volatile RAM.

The versatility, capacity, and reliability of the NetMediator are the reasons why it is the standard for network alarm monitoring needs.

Form Factor

  • Height: 1.75"
  • Width: 17"
  • Depth: 12"
  • Mounting:
  • Weight: 4.3 lbs

Core Features

  • Analog Alarms: 8
  • Control Relays: 8
  • Discrete Alarms: 32
  • External Speaker
  • Ground Isolated
  • Industrial Temp.
  • LCD Display
  • NIC: 10BaseT
  • Ping Alarms: 32
  • Power Connector: WAGO (4 pin)
  • Power Supply: -48Vdc
  • Rack Ears: Both
  • RoHS: 5/6
  • Web Browser Interface

Operating Conditions

  • Analog Input Range: -92-+92VDC or 4-20mA
  • Fuse: 3/4 Amp GMT
  • Humidity: 0-95% NC
  • Temperature: 32 to 140F (0 to 60C)

Optional Features

  • D-Wire: 1-Plug
  • Internal Temp Sensor
  • NIC: 10/100/1000BaseT, 10/100BaseT, Dual
  • Power Input: Dual
  • Power Supply: -24/48Vdc (wide range)
  • Rack Ears: 19-inch, 23-inch
  • RTC
No additional software.
