NetGuardian-16S

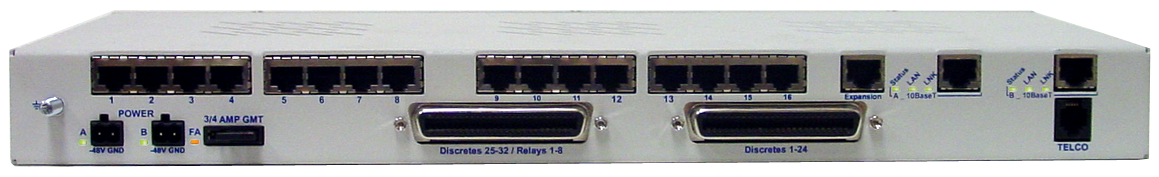

/products/rtu/d-pk-netgs/media/back-panel-960.png
/products/rtu/d-pk-netgs/media/back-panel-960.png
*Click an image to enlarge

With 16 serial ports, integrated local audiovisual notification, two separate NICs, powerful alarm collection, and versatile alarm reporting via SNMP Trap and email, the NetGuardian-16S can handle any alarm monitoring need.


Key Features

  • 8 analog alarms
  • 8 control relays
  • 32 discrete alarms
  • Web interface: monitor your network without a master

The NetGuardian-16S is based on the proven hardware and software of the popular 832A, providing you with greatly expanded functionality - including a 16-port terminal server, an integrated Building Status unit, and more.

This high-capacity SNMP RTU incorporates many functions that previously required several separate units. But, the NetGuardian-16S occupies only 1 RU on any standard 19" or 23" equipment rack, freeing valuable rack space for revenue-generating gear.

With the NetGuardian-16S, you can:

  • Connect multiple concurrent users via Telnet over LAN to up to 16 serial devices
  • Notify on-site personal of Critical, Major, and Minor alarms via the integrated audiovisual Building Status Unit
  • Connect the NetGuardian-16S to two separate Ethernet
  • connections, each with its own IP address
  • Monitor 32 discrete alarms, 32 ping alarms, and 8 analog alarms
  • Control remote site equipment via 8 control relays
  • Monitor your remote site from anywhere using the NetGuardian-16S’s built-in Web Browser Interface
  • Automatically send pager and email alarm notifications 24 hours a day, seven days a week

Form Factor

  • Height: 1.75"
  • Width: 8"
  • Depth: 6"
  • Mounting:
  • Weight: 0 lbs

Core Features

  • Analog Alarms: 8
  • Control Relays: 8
  • Discrete Alarms: 32
  • External Speaker
  • Fuse: 3/4 Amp GMT
  • LCD Display
  • LED status indicators
  • Modem: 33.6k
  • NIC: 10BaseT
  • NIC: Dual
  • Ping Targets: 32
  • Power Input: Dual
  • Power Supply: -48Vdc
  • Web Browser Interface

Operating Conditions

  • Analog Input Range: -92-+92VDC or 4-20mA
  • Current draw: 200mA
  • Humidity: 0-95% NC
  • Max. Current: 1 Amp, AC/DC
  • Max. Voltage: 60VDC / 120VAC
  • Temperature: 32 to 140F (0 to 60C)
No additional software.

Explore different capacities

d-pk- d-pk- d-pk-netg5 832A d-pk-netg5 864A d-pk-
Product Name NetGuardian 420 NetGuardian 240T NetGuardian-16S NetGuardian 864A G5 NetGuardian 480 G4
Alarm Count 20 40 32 64 80
Analogs 4 2 8 8 4
Comparison Roughly half the capacity. Adds T1 transport. - Double capacity in same 1RU Massive discrete capacity.
