NetGuardian 832A G5

/products/rtu/d-pk-netg5/media/back-panel-960.png
/products/rtu/d-pk-netg5/media/back-panel-960.png
*Click an image to enlarge

The NetGuardian 832A G5 is our most feature-rich RTU to-date. It monitors 32 discrete alarms, 8 analogs, 32 network devices, and 8 relays.


Key Features

  • Monitors up to 8 analogs
  • Controls up to 8 relays
  • High-capacity RTU with 32 discrete alarm points
  • Pings up to 32 network elements

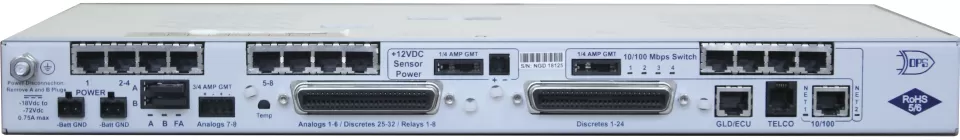

With our latest G5 model, we introduced a faster processor and switched to convenient RJ45 serial ports for the terminal server instead of DB9 ports which require cable soldering. In addition to the convenience, this gave us more room on the back panel to pack in tons of features. Not only have we further increased the speed, we've increased the security of the unit with SNMPv3 and HTTPS.

Build your perfect-fit monitoring system with the customizability of the NetGuardian 832A G5. This versatile RTU supports a number of protocols, allowing you to report alarms via SNMP (v1, v2c, and even v3) to your SNMP manager, DCP, SMS, email, through the device's web interface, and many more. The build options include up to 2 10/100BaseT dual NIC Ethernet ports, allowing you to maintain two isolated networks for increased network security. Additionally, you can monitor other network devices at your remote sites with the 8 serial ports where LAN access may not be present, or you can use the optional 4-port 10/100BaseT switch to expand your existing network.

If you anticipate multiple users having access to the device with different levels of permissions, we have you covered. The NetGuardian 832A G5 has up to 8 configurable users, each with their own unique permissions.

This isn't just any RTU, it's a NetGuardian. You're investing in a field-proven, fully-featured alarm remote unit. Various G5's with different build options have been used in hundreds of networks worldwide.

Form Factor

  • Height: 1.75"
  • Width: 17"
  • Depth: 12"
  • Mounting:
  • Weight: 4.19 lbs

Core Features

  • Analog Alarms: 8
  • Control Relays: 8
  • Discrete Alarms: 32
  • LCD Display
  • Ping Targets: 32
  • Power Input: Dual
  • Power Supply: -48Vdc
  • Web Browser Interface

Operating Conditions

  • Analog Accuracy: +/- 1%
  • Analog Input Range: -92-+92VDC or 4-20mA
  • Humidity: 0-95% NC
  • Max Current: 1A (AC/DC)
  • Max Voltage: -60VDC/120VAC
  • RoHS: 5/6
  • Temperature: 32 to 140F (0 to 60C)

Optional Features

  • 12V Sensor Power Supply
  • 4-Wire Interface
  • Analog Alarms: 4
  • BAS / GLD Support
  • CE Certified
  • Cellular Capabilities
  • Control Relays: 4
  • D-Wire: 1-Plug, 4-Plug
  • Discrete Alarms: 16 , 64, 8
  • E1 Interface
  • Fiber Interface
  • Ground Isolated
  • Inbound protocols: Badger
  • Internal Temp Sensor
  • NIC: 10/100/1000BaseT, 10/100BaseT, 10BaseT, Dual
  • Power Connector: Locking RIA, RIA
  • Power Supply: +24Vdc, -24/48Vdc (wide range), -24Vdc
  • RS232 Ports: 2, 3, 4, 6, 7, 8
  • RTC
  • Supports Server Shutdown
  • Temp. Probe
  • Temp/Battery Monitoring
No additional software.
