Site Dialer G3

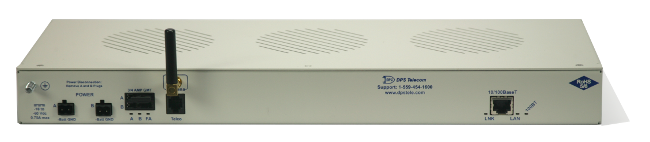

/products/accessories/d-pk-sdxmv/media/back-panel-960.webp
/products/accessories/d-pk-sdxmv/media/back-panel-960.webp
*Click an image to enlarge

When combined with your T/Mon SLIM, MINI, or LNX, the Site Dialer G3 delivers another critical method of receiving alarm notifications. It allows you to receive these voice alerts for the alarm points you already have databased in T/Mon.


Key Features

  • Verbally annunciates incoming messages via phone
  • Dials your home or cell phone with alarm messages already databased in T/Mon
  • Ack alarms from anywhere in the field using your home or cell phone

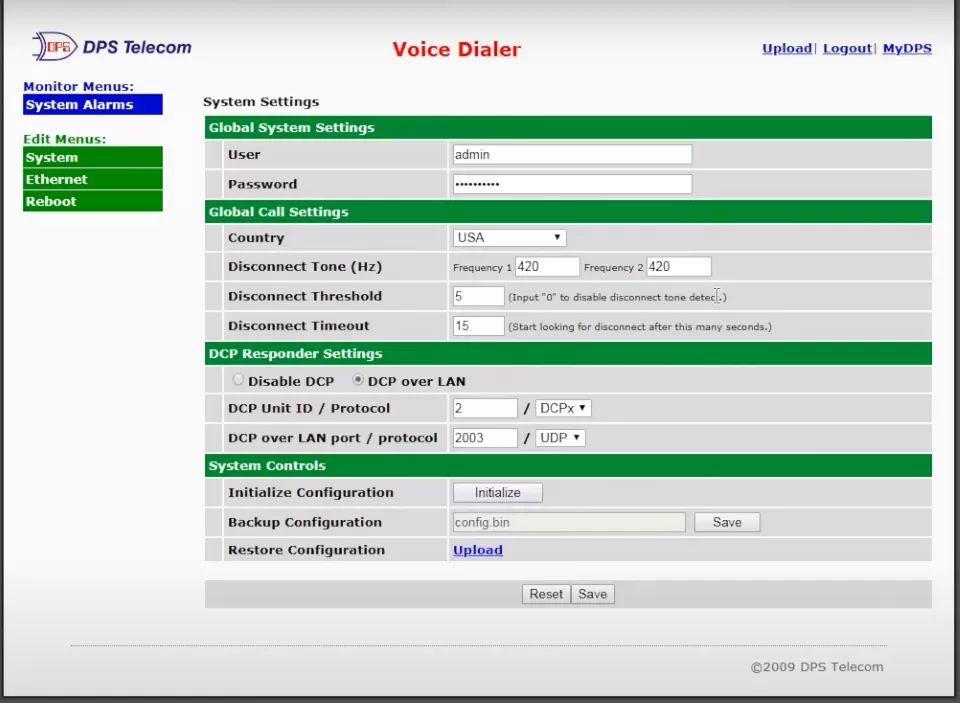

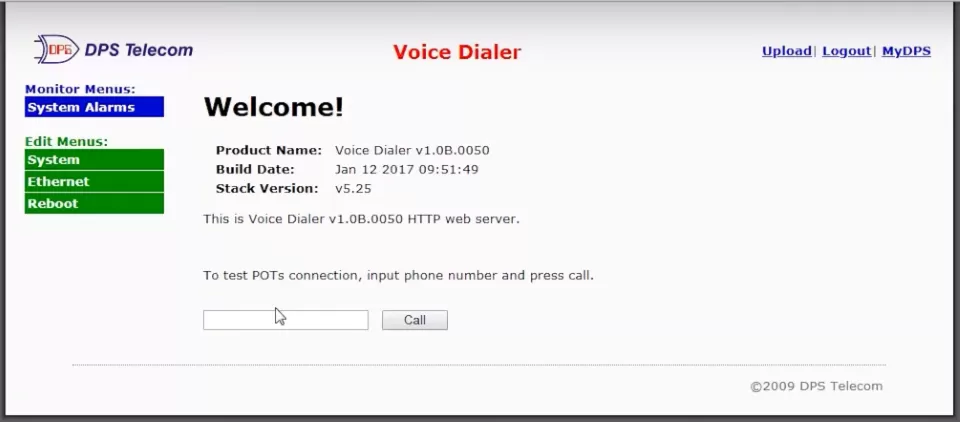

  • Includes built-in web browser for confirming configuration settings

Do you already have a model of the T/Mon master station and want to receive voice alerts from it? With the Site Dialer G3 you can easily do that.

You can assign voice notifications for a few specific alarm points, or for a range of points for an entire site, and the Site Dialer G3 calls your home or cell phone with verbal alarm information. Get the important notifications you need, no matter where you are, via text-to-speech voice alerts.

Maximize your T/Mon with the Site Dialer. Here's how it works:

  1. Notifies users via T/Mon paging queue by controlling Site Dialer via TCP
  2. Creates voice message and sends it to Site Dialer via HTTP post
  3. Dials home phone or cell and plays message
  4. User hears message and acknowledges it via DTMF input
  5. User's initials are recorded to master's history and escalation stops

Form Factor

  • Height: 1.72"
  • Width: 17"
  • Depth: 6.64"
  • Mounting:
  • Weight: 3.8 lbs

Core Features

  • LED status indicators
  • Max Current: 3/4 Amp, AC/DC
  • Modem: 33.6k
  • NIC: 10/100BaseT
  • Power Input: Dual
  • Power Supply: -48Vdc
  • RoHS: 5/6
  • Web Browser Interface

Operating Conditions

  • Humidity: 0-95% NC
  • Temperature: 32 to 140F (0 to 60C)

Optional Features

  • Rack Ears: 19-inch, 23-inch
No additional software required.

Use the built-in web interface for configuration. Monitor via web interface, your SNMP manager, or a T/Mon master station.
