Alarms Don't Seem to Work? How to Test Alarm Points Using Alligator Clips and a Multimeter

By Morgana Siggins

December 3, 2019


Troubleshooting remote telemetry units and remote site equipment can be tedious and frustrating. Sometimes it's difficult to even know where to start. Even a simple monitoring problem can cause several problems if not properly addressed.

And how to even know if you've brought the right tools to diagnose the problem? What if you're too far out of reach of phone service or any other kind of communication?

It's vital to know some quick and easy tests to troubleshoot your devices.

If you're experiencing alarm point problems, you have to know if the problem is with your RTU or with your monitored equipment. This will ultimately save you time and money.

In this article, I'll help you cut through the frustration and uncertainty of not knowing which device is giving you problems. The following instructions will guide you step-by-step how to perform the alarm point testing, using ordinary tools that are probably always in your toolbox.


First of All, What Will You Need?

Before getting started, let's take a look at what you'll need to do the alarm points test.

  • Have your hardware manual nearby

    Have your RTU manual on hands.

    If you have a NetGuardian and you've misplaced your physical copy of the manual that you were sent, you can simply access our website homepage - at www.dpstele.com. At the top right-hand corner of the web page, hit the support tab. This will take you to the Download User Manual link. There you can search and download any user manual at any time.

  • Get your alligator clips

    With it, you can create a temporary electrical connection between the devices you'll be testing.

  • Have your 66 Block Connector ready

    The 66 Block is a simple piece of equipment that has found its usage in the important role of connecting two system together. It's a simple way to use wire-wrap connections with DPS RTUs.

    If you really want connections to stay in place, use a wire wrap. You'll simply punch down your alarm, analog, and/or control relay wiring to the 66 Block, then connect the 66 Block to the RTU using a standard amphenol cable.

    Keep in mind, though, when attaching the NetGuardian to 66 Block together, that the 66 Block numbering begins from the top. The count starts from the 1 pin and 26 pin. Since the pins are next to each other, you'll count in pairs. The order, then, is: 1 pin - 26 pin; 2 pin - 27 pin; 3 pin - 28 pin; and so on.

  • Have a multimeter within reach

    A multimeter, also known as a multitester, is the electronic equipment that will help you measure the continuity between your RTU and equipment.

  • And finally, you'll need a relay

    This relay can be any kind of output that the equipment you're monitoring uses.

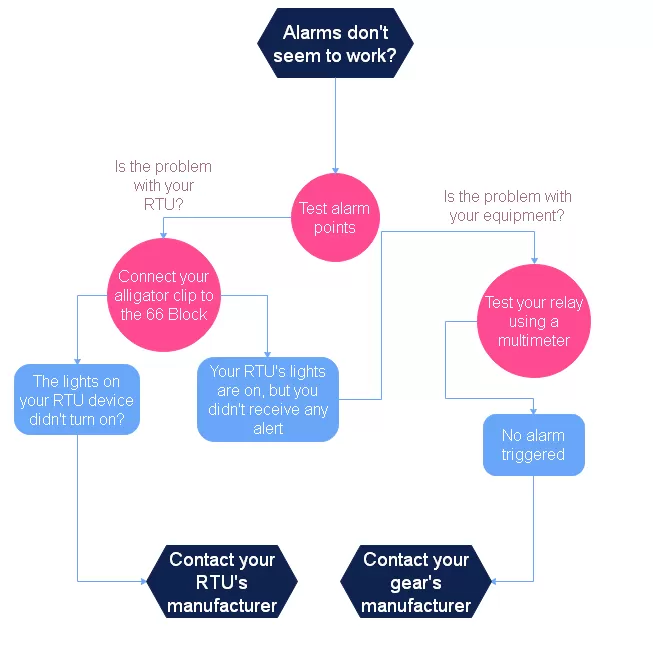

Now that you know the tools that you'll use to troubleshoot your alarm points, let's get started with the step-by-step.


Is the Problem on Your RTU?

1. On your device's manual, look for the 66 Block Connector table.

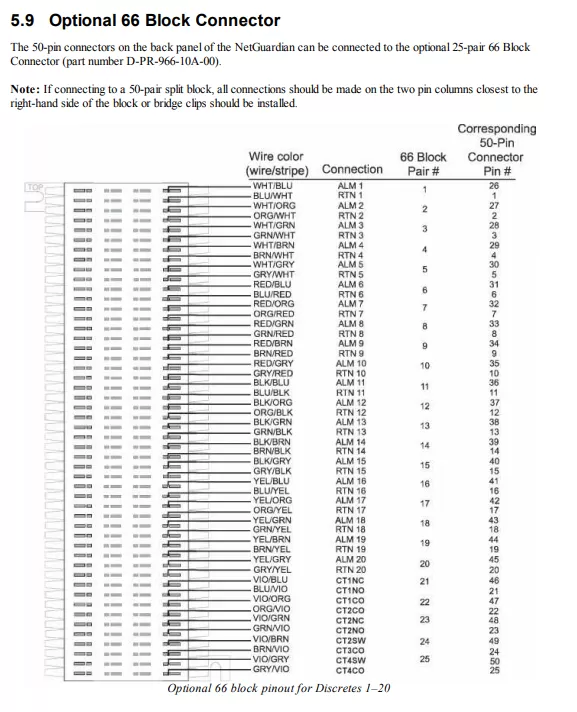

This is an example of the 66 Block Connector table that you can find on the Netguardian 420's manual.

The 66 Block Connector image will tell you where you should connect the alligator clip on, in order to test the alarm.

The user manual brings a description of all the pins, the pin numbering, and the pin color codes for your 66 Block. Therefore, this is a good guide if you need extra information on exactly where these pins are going to be connected, and where they're going to be returning to, also what their function is.

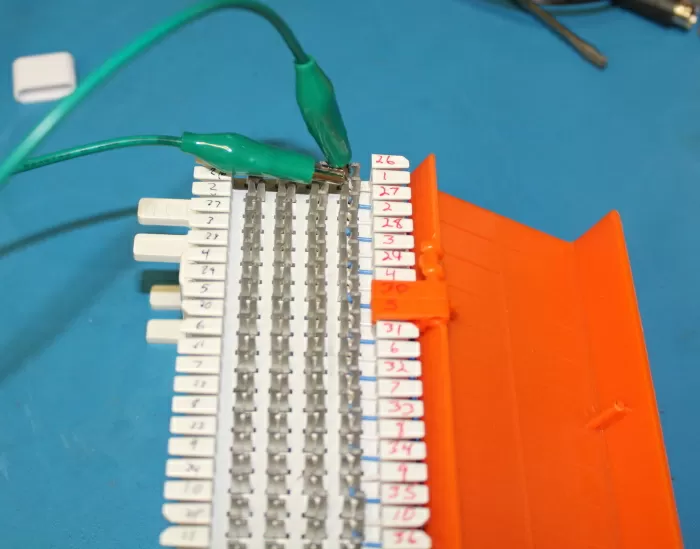

2. Depending on how your specific device is set up, you'll connect your alligator clip from ground to alarm (most of the cases) or from alarm to return.

In the picture we can see a ground to alarm connection.

3. After having your alligator clip connected on the 66 Block, your next step is to verify on your device's interface to see if you received any alarm or you can look at the device itself to make sure the alarm light came on.

If the lights on your device came on, but you didn't receive any alert on your interface, this possibly means that you have a continuity issue - and you should move on to the following second phase of the testing.


Is the Problem on The Equipment You're Monitoring?

The next steps should be taken whenever an alarm conditions occurs but you don't receive any alarm. As I said before, this can be a continuity issue, and you should contact the manufacturer of the devices you're remote monitoring.

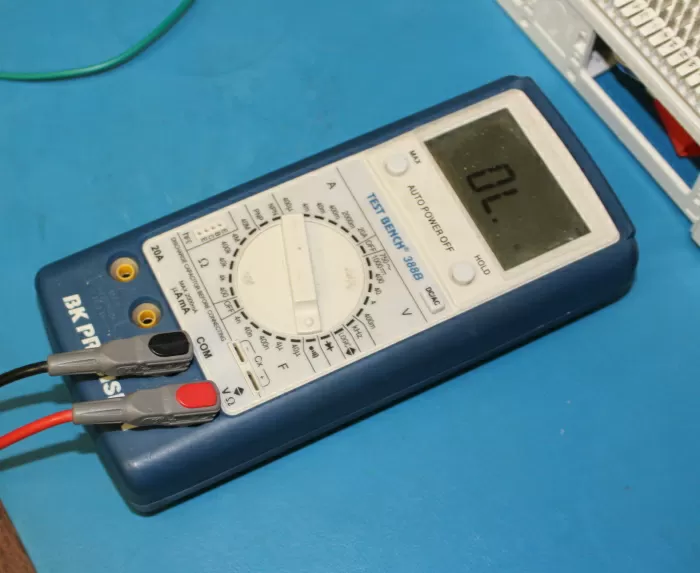

1. Your first step is to switch your multimeter to continuity test option.

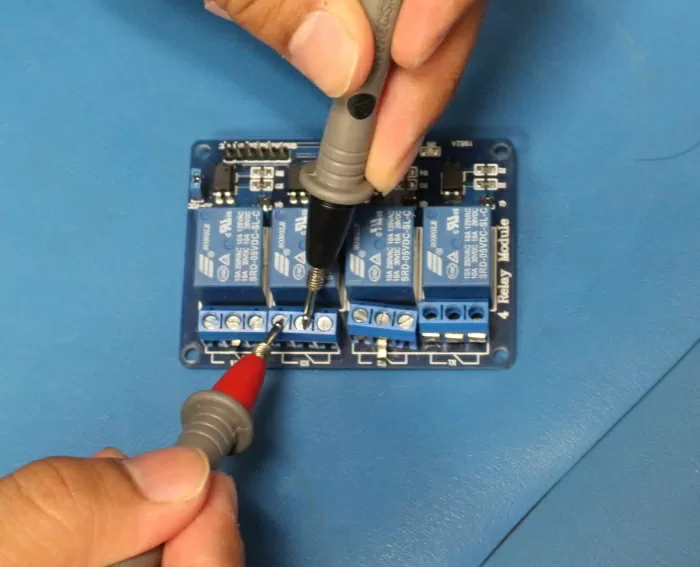

2. To check if your device is latched, connect normally open to common on your equipment's relay.

If you can observe lights on your RTU turning on, but no alarm is triggered, then you have a latching issue and it's time to contact your gear's manufacturer.
