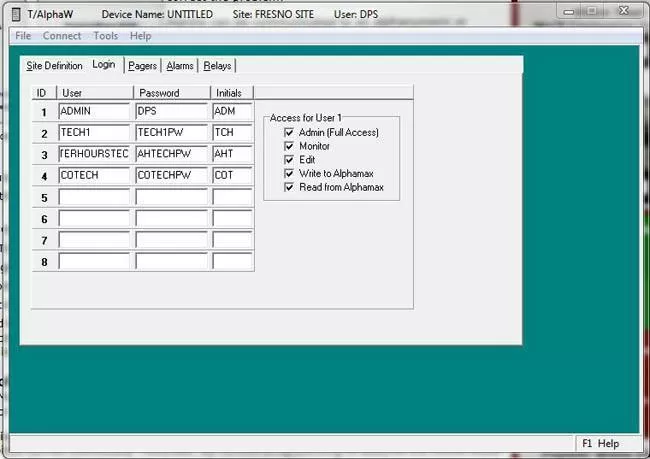

|Dimensions:||3.1" W x 5.3" H x 1.25" D|
|Mounting:||wall, frame or rack.|
|Power Input:||+9 to +27 VDC, 133 mA@ 9VDC (1.2 Watts) or -48 VDC, |
Use the AC adapter provided with the AlphaMax or power by DC input. Battery Backup available on an external "UPS" connector block.
|Heat Dissipation:||4.1 BTU, maximum|
|Interfaces:||1 DB25 - alarm |
1 RJ11 - modem

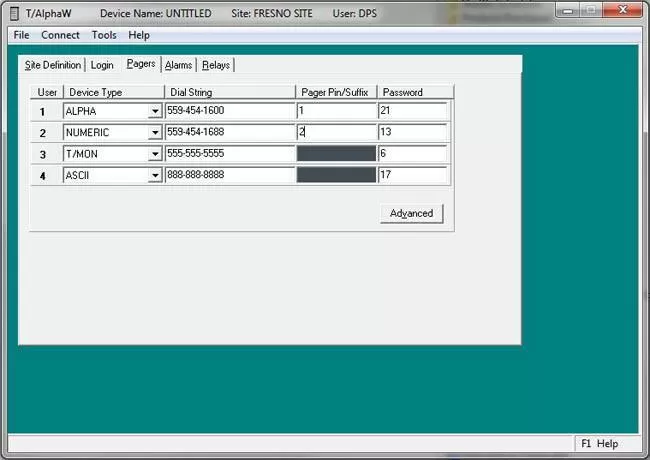

|Protocols:||TRIP - For T/Mon |
TAP - Paging Terminal
ASCII - Simple dump for any ASCII Master
|Modem:||212 "AT" Type 300/1200 baud DTMF/Pulse dial internal - modem with DTMF receiver |
Optional 2400 baud modem.

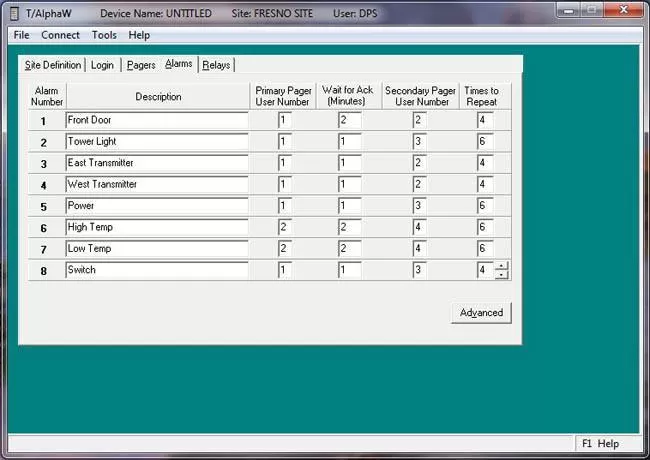

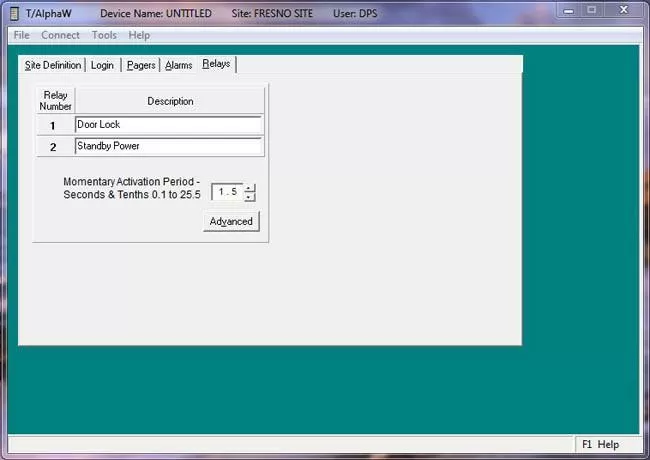

|Alarm Point Inputs:||8 discrete|
|Control Outputs:||Relay contacts, 2 each Form "C"|
|Max. Voltage||60 VDC/120 VAC|
|Max. Current||1 Amp, AC/DC|
|Operating Temperature:|| 32°-140° F (0°-60° C) |
-22° to +150° F (-30° to 70° C) for -20 option
|Operating Humidity:||0%-95% non-condensing|
|UPS Connector Block Specifications (Option)|
Alphamax UPS Connection
|Dimensions:||2.75" W x 6" H x 2" D|
|Fuse value:||250 mA (1/4 Amp), Type GMA (5 x 20 mm)|
|Connectors:||DB25 for connections to AlphaMax |
Screw-on jack for AC adapter power
Screw lug Terminals for alarm / control points
|Battery:||GP Silvacharge 8.4 volt, 150 mA/hr - capacity of 2, 1 equipped|
|Operating time: ||3 hours from full charge, no relays operated|
|Recharge time: ||16 hours, from a full discharge|
|Life Expectancy: ||500 to 1000 recharge cycles|
|Mounting:||wall, frame or rack - two keyhole-shaped holes spaced 1.75" apart (Matches AlphaMax hole pattern.)|
|Other Termination Options|

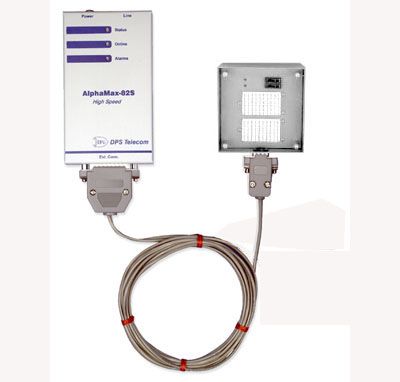

Wire Wrap Block

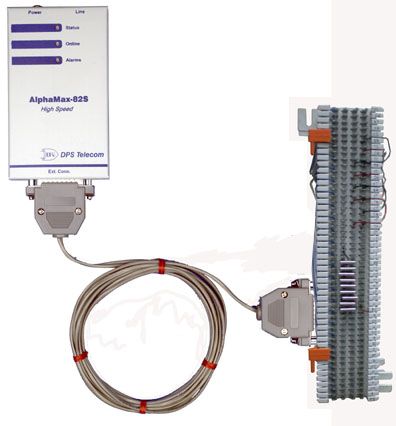

66 Alarm Block
