NetMediator RTD G5

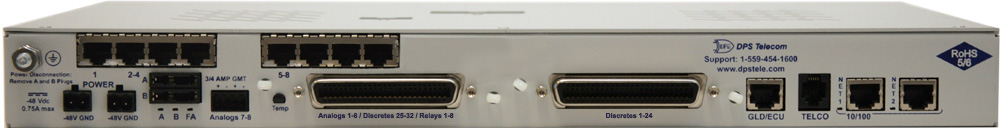

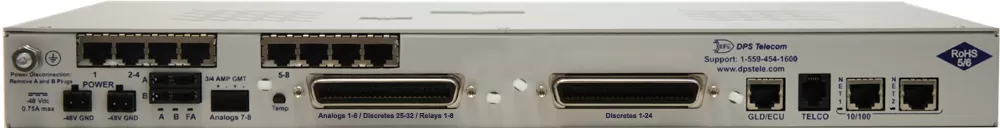

/products/rtu/d-pk-nm832/media/back-panel-960.png
/products/rtu/d-pk-nm832/media/back-panel-960.png
*Click an image to enlarge

The NetMediator RTD G5 is a powerful, compact alarm collector that provides network managers with remote visibility of their IP network elements.


Key Features

  • 8 analog alarms
  • 8 control relays
  • 32 discrete alarms
  • 32 ping alarms

Get to know a newer model: the NetGuardian 832A G5.


The NetMediator RTD G5 supports 32 ping alarms, 32 discrete alarms, 8 analog inputs, and 8 controls. This means that this versatile unit will give you a vision of your entire network. And with redundant network connectivity, you will have a backup means of reporting.

This RTU has many important features that will help you have a complete situational awareness over your remote sites at all times. Here are some of the NetMediator capabilities:

  • Monitor 32 discrete alarms, 32 ping alarms, and 8 analog alarms.
  • Expand analog coverage to 72 sensors with RTD 32 DX units.
  • Control remote site equipment via 8 terminal server ports and 8 control relays.
  • Set threshold groups and derive relay actions based on analog threshold alarms.
  • Monitor your remote site from anywhere using the NetMediator's built-in Web Browser Interface.
  • Report alarms to multiple SNMP managers or the T/Mon Alarm Monitoring System.
  • Report alarms via LAN or dial-up connection.
  • Automatically send pager and email alarm notifications 24/7.
  • Connect multiple concurrent users via Telnet over LAN to telecom switches, servers, radios, PBXs and other equipment.
  • Ping IP network devices and verify that they're online and operating.
  • Configure redundant LAN connectivity, to ensure reporting even if the primary LAN path fails.

Form Factor

  • Height: 1.75"
  • Width: 17"
  • Depth: 8.1"
  • Mounting:
  • Weight: 4.3 lbs

Core Features

  • Analog Alarms: 8
  • Control Relays: 8
  • Discrete Alarms: 32
  • External Speaker
  • Fuse: 3/4 Amp GMT
  • LCD Display
  • Ping Targets: 32
  • Power Supply: -48Vdc
  • RoHS: 5/6

Operating Conditions

  • Analog Accuracy: +/- 1%
  • Analog Input Range: -92-+92VDC or 4-20mA
  • Current draw: 200mA
  • Humidity: 0-95% NC
  • Max. Current: 1 Amp, AC/DC
  • Max. Voltage: 60VDC / 120VAC
  • Temperature: 32 to 140F (0 to 60C)

Optional Features

  • Power Supply: +24Vdc, -24/48Vdc (wide range), -24Vdc
No additional software.

Explore different capacities

d-pk- d-pk- d-pk-netg5 832A d-pk-netg5 864A d-pk-
Product Name NetGuardian 420 NetGuardian 240T NetMediator RTD G5 NetGuardian 864A G5 NetGuardian 480 G4
Alarm Count 20 40 32 64 80
Analogs 4 2 8 8 4
Comparison Roughly half the capacity. Adds T1 transport. - Double capacity in same 1RU Massive discrete capacity.
