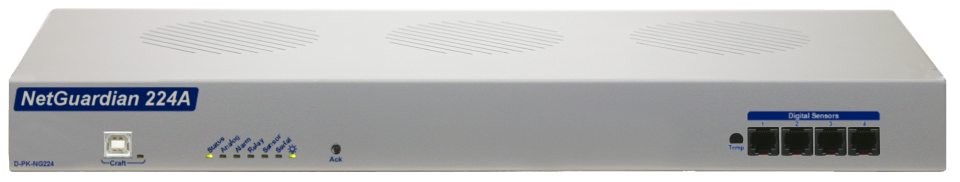

NetGuardian 224A

The NetGuardian 224A monitors 24 discrete alarms and reports events to a Master Station, such as the T/Mon LNX, via LAN. It is equipped with 2 user-defined analog channels with 4 user defined thresholds per channel. The analogs terminate to convenient RJ45 connectors. There is 1 connector per analog channel and each input supplies +24Vdc to power your sensor if needed. Each analog may be configured for either -90 to 90 voltage range or 4-20 mA using field selectable shunt.

The NetGuardian 224A includes 24 discrete alarm inputs, 2 general-purpose relay outputs, and 2 general-purpose analogs, plus integrated battery voltage monitor. The unit also comes with 1 RS232 serial port for future use.

The NetGuardian 224A features DPS Telecom's user-friendly Web interface for convenient configuration and monitoring. Other features include real-time Clock (RTC), single -48VDC using RIA connector, a GigE Fiber port with SFP Sockets (ordering option) and 12 Port 10/100/1000 BaseT LAN switch (ordering option).

Other benefits of the 224A:

• Plug 'n' play design – start monitoring in minutes
• SNMPv3 compatible – send traps to your SNMP manager
• 4 D-Wire sensor ports
• Software reversible alarm inputs
• Analog channels have integrated 24V power supply
• Integrated temperature sensor
• Expanded operating temperature range for extreme temperatures
• 2-year hardware warranty
• 30-Day no-risk money-back guarantee

Form Factor

• Height: 1.75"
• Width: 17"
• Depth: 12.75"
• Mounting:
• Weight: 0 lbs

Core Features

• Analog Alarms: 2
• Control Relays: 2
• D-Wire: 4-Plug
• Discrete Alarms: 24
• NIC: 10/100BaseT
• Ping Targets: 32
• Power Supply: -48Vdc
• Rack Ears: Both
• RoHS: 5/6
• Serial Port: RS232
• Web Browser Interface

Operating Conditions

• Fuse: 3/4 Amp GMT
• Humidity: 0-95% NC
• Max. Current: 1 Amp, AC/DC
• Max. Voltage: 60VDC / 120VAC
• Temperature: -22 to 158F (-30 to 70C)

Optional Features

• Power Supply: +12Vdc, +24Vdc, +48Vdc, -12Vdc, -24Vdc
• Rack Ears: 19-inch, 23-inch
