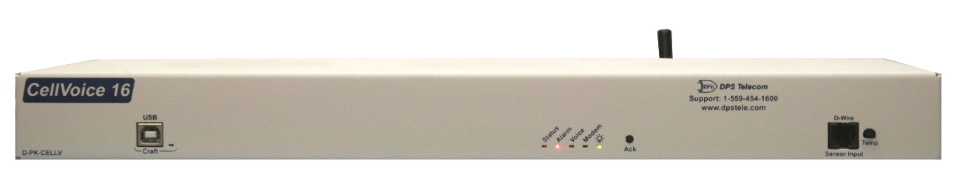

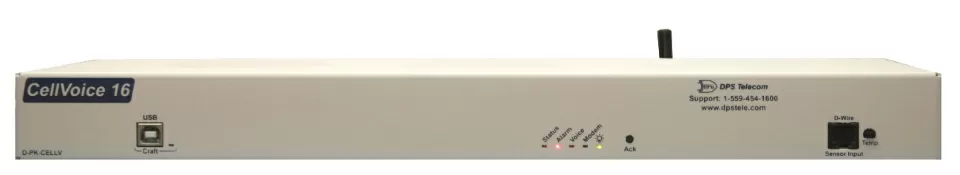

CellVoice 16

*Click an image to enlarge

With support to 16 discrete alarm points and an integrated temperature sensor, the CellVoice 16 is an effective, low-cost way to monitor your remote sites. You'll receive notifications via voice dial-out, email, or SNMP.

Key Features

  • 6 Analog Alarm Inputs
  • 2 or 18 Control Relay Outputs (Build option)
  • 16 D-Wire temperature or humidity sensors
  • 16 Discrete Alarm Inputs
  • 32 Ping Targets

The CellVoice 16 brings convenient cellular voice alerts to your medium-sized sites. You don't have to rely on LAN or POTS access to hear what's going on. Now, no matter what transport is available at your sites, you can have custom voice alerts sent to your phone when something goes wrong.

In addition to custom cellular voice alerts, the Cell Voice 16 can also send alarm alerts via SMS. With DPS Telecom's new SMS reporting technology, the CellVoice series RTUs can send SMS alarm alerts directly to your phone or to your SNMP manager via the new SMS Receiver. The SMS Receiver mediates SMS messages to SNMP and forwards alarms to your SNMP manager.

With previous-generation cellular gear, you would've had to pay for a third-party data provider and punch a hole in your firewall to get alarms over CDMA/GSM wireless channels. With DPS Telecom's new SMS reporting technology, you can report alarms over SMS without any of the cellular hassles you used to have.

Over direct LAN, the CellVoice 16 can send SNMP traps direct to your SNMP manager, and email alerts to on-call technicians. You can also configure the unit's cellular connection as an alternate network path, going active only if LAN fails.

In a nutshell, the CellVoice 16 a wireless triple threat, featuring custom voice alerts, SMS messages to your phone or SNMP master station, and email notifications for alarms at your sites.

Based on the time-tested NetGuardian design, the telco-grade Cell Voice 16 is built with plenty of alarms and controls to cover your moderately sized sites, with options for 16 extra control relays, and integrated internal and external temperature sensors.

Here's what the new Cell Voice 16 has in store for you:

  • Wireless Triple Threat

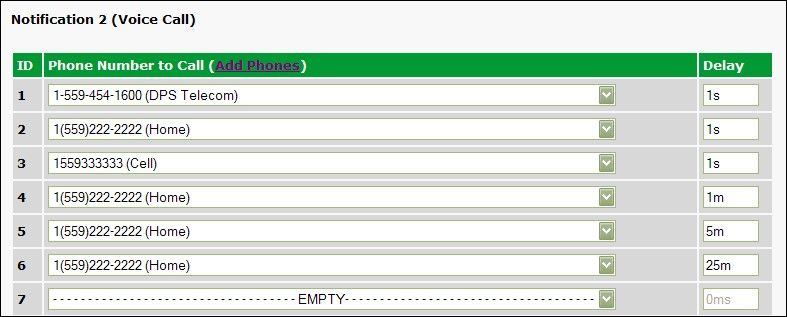

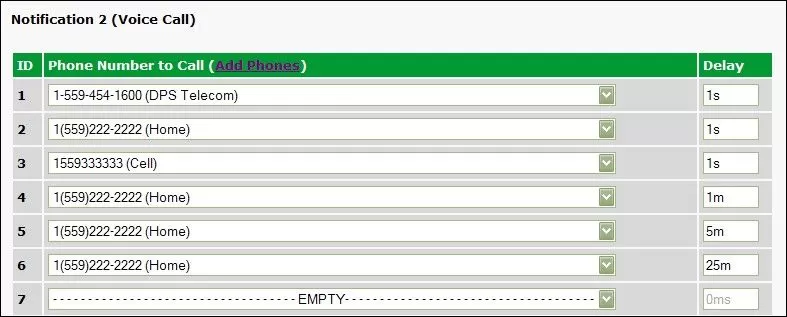

  • Custom Cellular Voice Alerts
  • SMS Alarm Notifications to your phone and SNMP manager (with SMS Receiver)
  • Email Notifications (via SMS)
  • 16 discrete alarms
  • 8 Analogs (4 general purpose, 2 battery monitoring, 1 internal temp, 1 external temp)
  • 2 or 18 Form C relays (depending on your build option)
  • SNMP and email alerts

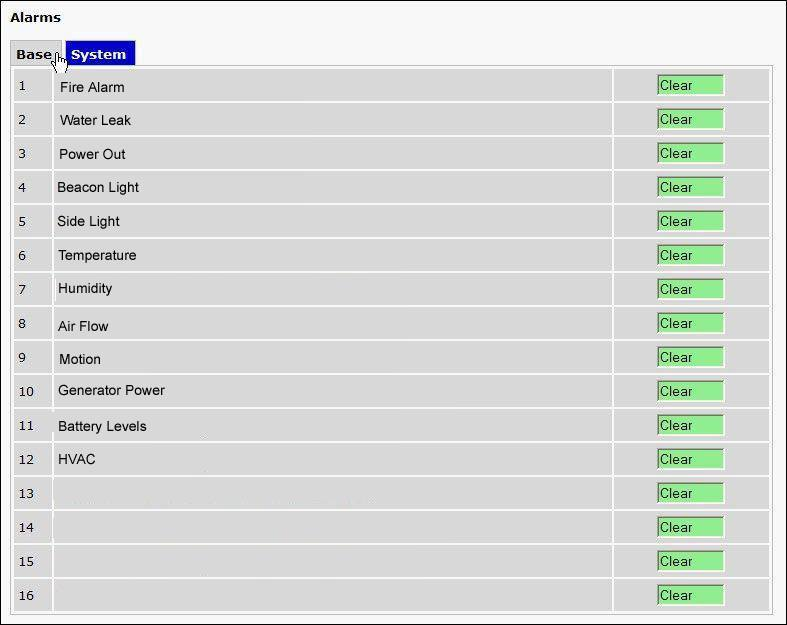

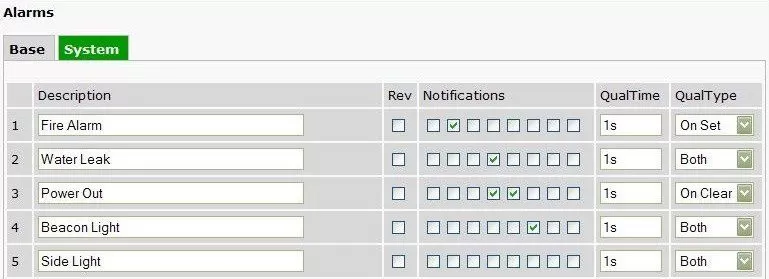

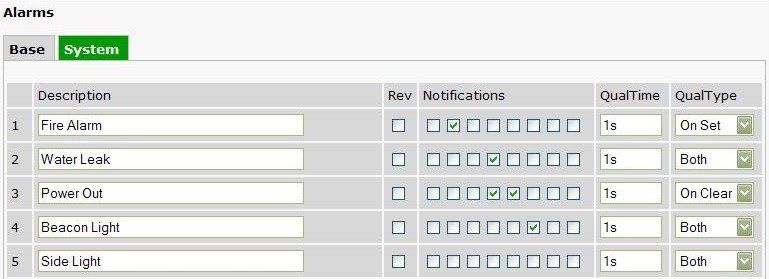

  • Convenient web browser configuration and monitoring - easy to setup and use

Form Factor

  • Height: 1.72"
  • Width: 17"
  • Depth: 6.6"
  • Mounting:
  • Weight: 2.8 lbs

Core Features

  • Analog Alarms: 6
  • Control Relays: 2
  • D-Wire: 1-Plug
  • Discrete Alarms: 16
  • Fuse: 3/4 Amp GMT
  • LED status indicators
  • NIC: 10/100BaseT
  • Ping Targets: 32
  • Power Supply: -48Vdc
  • RJ45 connections: 32
  • Web Browser Interface

Operating Conditions

  • Analog Accuracy: +/- 1%
  • Humidity: 0-95% NC
  • Temperature: 32 to 140F (0 to 60C)

Optional Features

  • Control Relays: 18
  • Rack Ears: 19-inch, 23-inch
No additional software required.

Use the built-in web interface for configuration. Monitor via web interface, your SNMP manager, or a T/Mon master station.
