Smart Fuse Panel Remote Power Switch AB6

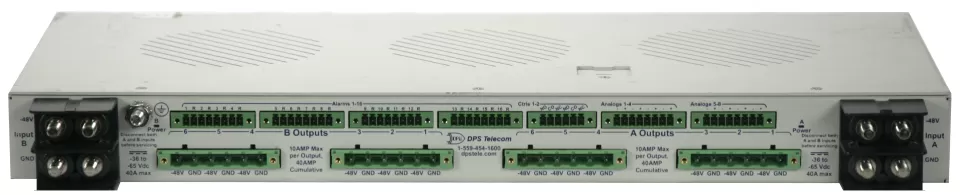

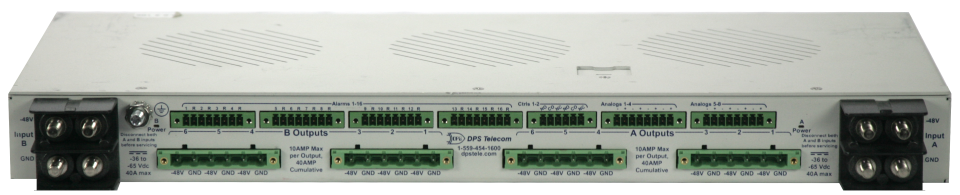

/products/pdu/d-pk-rpsdc/media/back-panel-960.png
/products/pdu/d-pk-rpsdc/media/back-panel-960.png
*Click an image to enlarge

Deploy the Smart Fuse Panel at critical locations to switch on, switch off, and reboot equipment from your desk. It includes 12 fuses, 2 circuit breakers, and a LAN port.


Key Features

  • Each of the 2 inputs services 6 outputs (ideal for connecting devices with two redundant power supplies)
  • Remotely switch on/off and reboot equipment
  • Full RTU build option
  • Secure web browser interface

Have you ever had to jump in your truck and drive hours to a site to reboot jammed equipment or replace blown fuses? If so, you know just how useful a remote power switch can be. You also need the ability to deactivate your equipment remotely in the event of an emergency. Remote shut-down capabilities give you greater control and management for your entire network in times of emergency.

That's exactly why the Smart Fuse Panel Remote Power Switch AB6 was designed. It combines the functionality of a traditional remote fuse alarm distribution panel, a PDU, and an optional integrated RTU that gives you additional environmental monitoring. At just 1RU in size, it's the physical-size match of the most common fuse panels.

What you get with the Smart Fuse Panel

  • Power distribution panel that allows you to switch on/off and reboot equipment, right from your desk chair.
  • Redundant -48vdc power inputs (-35 to -56 vdc).
  • Each of the 2 inputs services 6 outputs (ideal for connecting devices with two redundant power supplies).
  • Optional integrated RTU that allows you to monitor temperature, humidity, water, air flow, motion, etc.
  • Alarming option.
  • D-Wire Option.
  • A&B source feed voltage monitoring.
  • Sequenced power-on to reduce power-on surges.

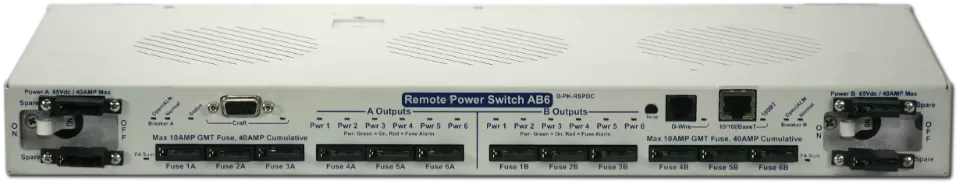

  • Convenient front-panel fuses, and dual input breakers.
  • LEDs indicate when power off/fuse blown.
  • Unique SNMP traps sent when power relay activated/deactivated, individual fuse blown, or input power lost.
  • Secure web browsing (via SSL encryption) for security-conscious organizations.

Form Factor

  • Height: 1.75"
  • Width: 17"
  • Depth: 8.5"
  • Mounting:
  • Weight: 5 lbs

Core Features

  • NIC: 10/100BaseT
  • Power Input: Dual
  • Power Supply: -48Vdc
  • RJ45 connections: 32
  • Serial Port: RS232
  • Web Browser Interface

Operating Conditions

  • Humidity: 0-95% NC
  • Temperature: 32 to 140F (0 to 60C)

Optional Features

  • D-Wire: 1-Plug
  • Rack Ears: 19-inch, 23-inch
  • RTU build option
No additional software.
