Wireless Receiver

/products/accessories/d-pk-wirex/media/back-panel-960.png
/products/accessories/d-pk-wirex/media/back-panel-960.png
*Click an image to enlarge

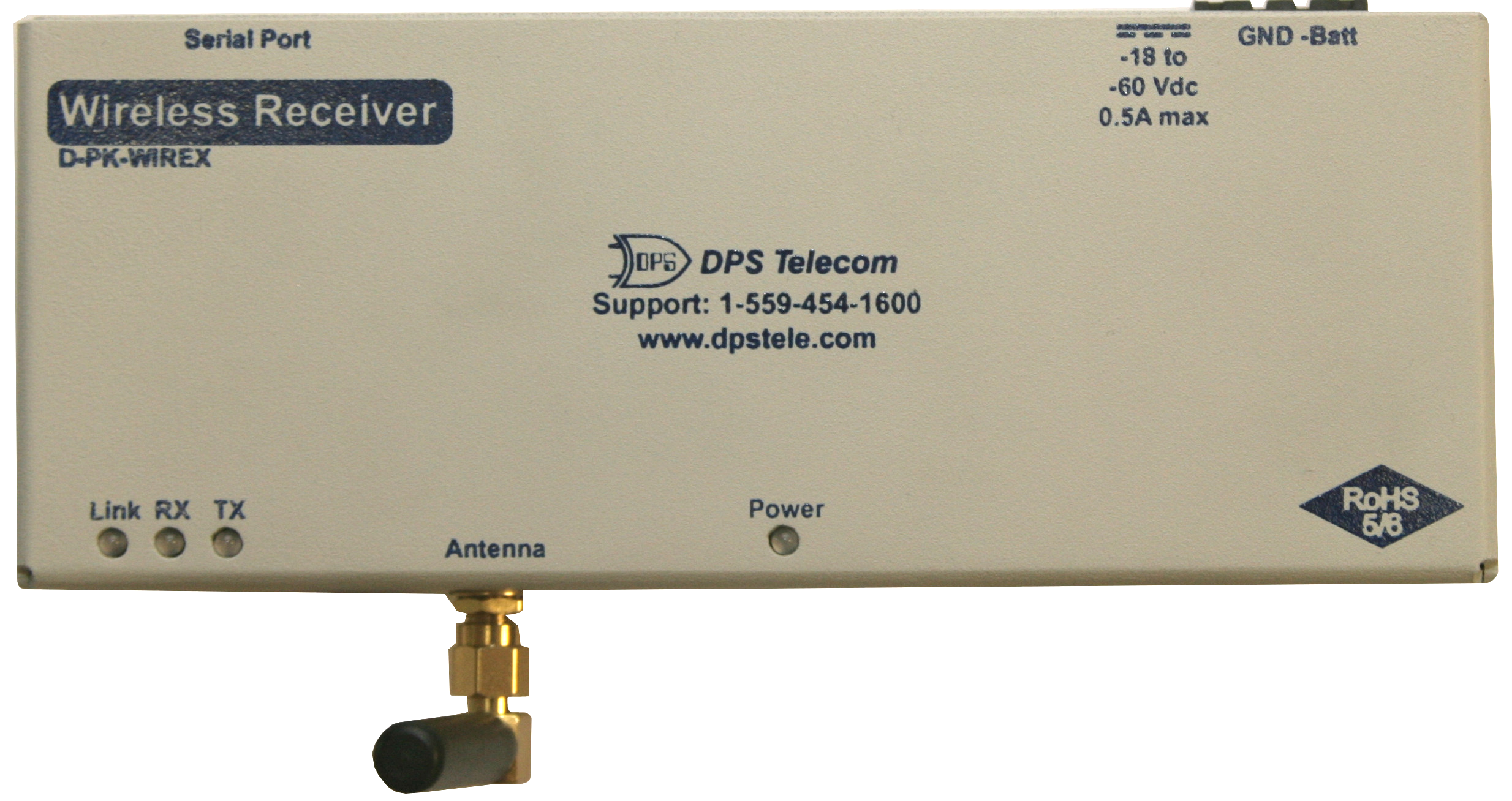

The Wireless Receiver connects to your NetGuardian RTU and interfaces with the Wireless Extender that is connected to a propane sensor.


Key Features

  • 1 RS232 serial port

Do you need a wireless solution to monitor your remote propane tanks?

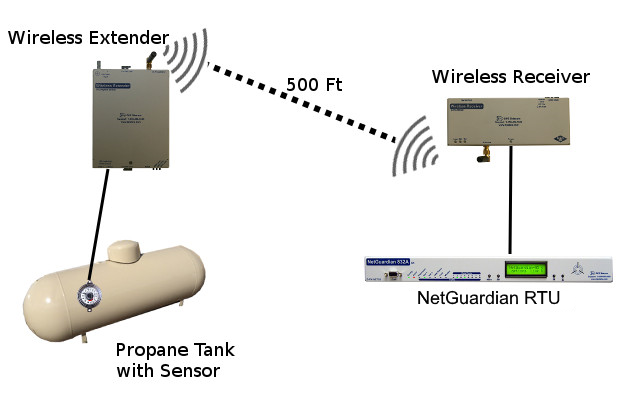

The Wireless Receiver is part of this solution. It will connect to a Netguardian RTU and will interface with a Wireless Extender, which is connected to your propane sensor tank. This way, propane levels will be transmitted from the sensor to the Wireless Extender, and wirelessly from the Extender to the Receiver, which will send the information to your RTU.

Propane levels will be transmitted at a configured interval to ensure proper levels. However, if the power fails (and therefore the generator runs), the propane levels can be configured to transmit more frequently. This provides thorough visibility while extending the battery life.

This solution provides convenient access to monitor propane levels wirelessly from a NetGuardian RTU.

Form Factor

  • Height: 2.5"
  • Width: 6.5"
  • Depth: 1.12"
  • Mounting:
  • Weight: 0.56 lbs

Core Features

  • Industrial Temperature: -22° to 158° F (-30° to 70° C)
  • LED status indicators
  • Power Supply: +12Vdc
  • RoHS: 5/6
  • Serial Port: RS232

Operating Conditions

  • Humidity: 0-95% NC
  • Temperature: 32 to 140F (0 to 60C)

Optional Features

  • Mounting: Wall mount
  • Power Supply: +48Vdc
No additional software.

Explore different capacities

d-pk- d-pk- d-pk-netg5 832A d-pk-netg5 864A d-pk-
Product Name NetGuardian 420 NetGuardian 240T Wireless Receiver NetGuardian 864A G5 NetGuardian 480 G4
Alarm Count 20 40 32 64 80
Analogs 4 2 8 8 4
Comparison Roughly half the capacity. Adds T1 transport. - Double capacity in same 1RU Massive discrete capacity.
