NetGuardian 832 DX G5

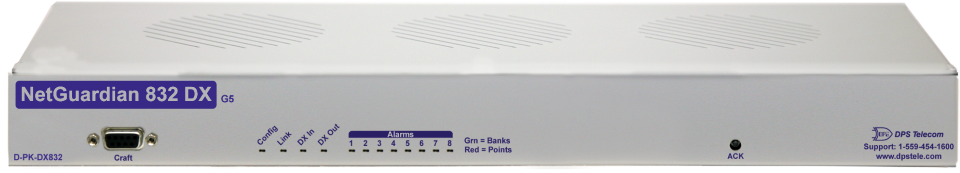

/products/accessories/d-pk-dx832/media/front-panel-960.png
/products/accessories/d-pk-dx832/media/front-panel-960.png
*Click an image to enlarge

Each NetGuardian Discrete Expansion unit gives you an additional 32 alarm points and 8 control relays to extend the capacity of your NetGuardian 832A G5.


Key Features

  • 8 analogs per expansion
  • Up to 8 additional relay contact closures
  • 32 ground-activated discrete alarms per expansion
  • Convenient alarm viewing and configuration via the NetGuardian's Web Browser

Is your network growing at a rapid pace? You already have the NetGuardian 832A, but are you still running out of available discrete alarms?

With the NetGuardian 832A DX G5, you can use your existing RTU to help manage your growing network. This expansion unit doubles, triples, or quadruples the capacity of your NetGuardians by offering more discrete alarm points, relays, and analog per chassis. This is a low-cost, self-contained device that makes the expansion process much simpler.

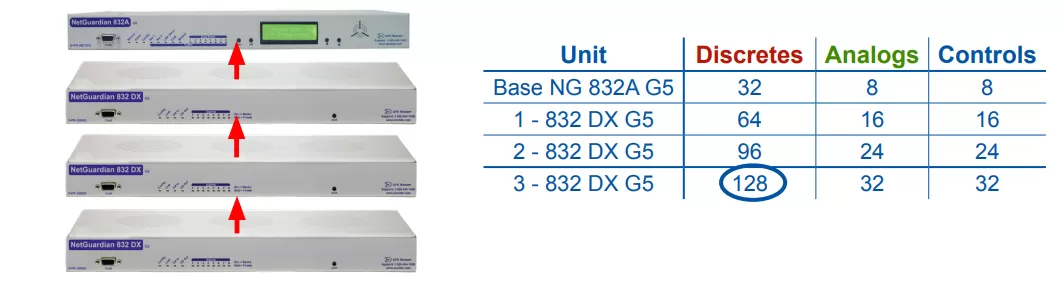

This device has dual RS232 ports so you can daisy-chain up to 3 DX units to a base NetGuardian. If you have the NetGuardian 832A, the NetGuardian 832A Dx will give you a total of 128 discrete points with 3 expansions.

Your NetGuardian DX Expansion can also act as a stand-alone RTU. To do this, the DX Expansion connects directly to your T/Mon LNX and adds an additional 48 discrete points at any given site.

Form Factor

  • Height: 1.72"
  • Width: 17"
  • Depth: 8.13"
  • Mounting:
  • Weight: 3 lbs

Core Features

  • Analog Alarms: 8
  • Control Relays: 8
  • Discrete Alarms: 32
  • Fuse: 3/4 Amp GMT
  • Max. Current: 1 Amp, AC/DC
  • Power Input: Dual
  • Power Supply: -48Vdc
  • Serial Port: RS232

Operating Conditions

  • Humidity: 0-95% NC
  • Max. Voltage: 60VDC / 120VAC
  • Temperature: 41 to 95F (5 to 35C)

Optional Features

  • Rack Ears: 19-inch, 23-inch
No additional software.

Explore different capacities

d-pk- d-pk- d-pk-netg5 832A d-pk-netg5 864A d-pk-
Product Name NetGuardian 420 NetGuardian 240T NetGuardian 832 DX G5 NetGuardian 864A G5 NetGuardian 480 G4
Alarm Count 20 40 32 64 80
Analogs 4 2 8 8 4
Comparison Roughly half the capacity. Adds T1 transport. - Double capacity in same 1RU Massive discrete capacity.
