Trap 48 RA

/products/rtu/d-pk-trapr/media/app-drawing-960.png
/products/rtu/d-pk-trapr/media/app-drawing-960.png
*Click an image to enlarge

The easy-to-install Trap 48 RA operates up to 48 relays and 16 audio outputs.

Key Features

  • 16 audio outputs
  • 48 relay outputs
  • 64 ping targets

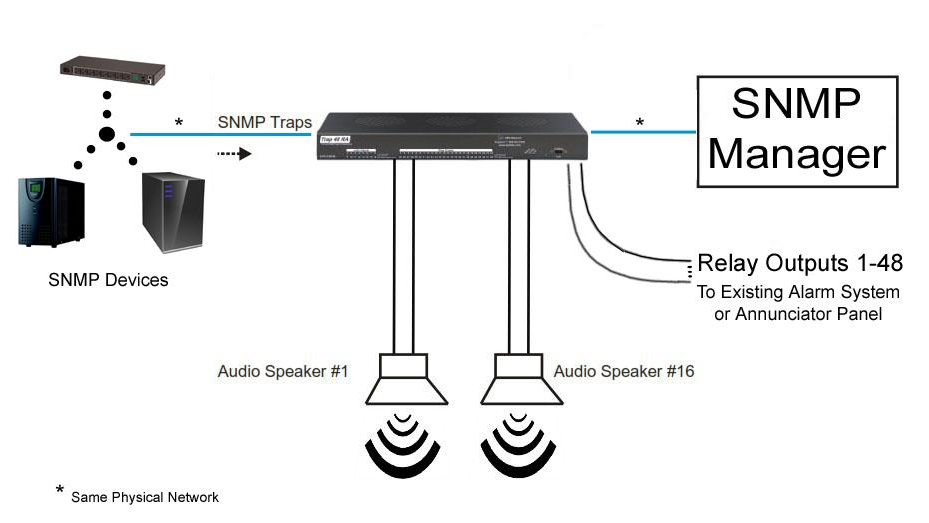

The Trap 48 RA is a device that operates up to 48 relays and 16 audio outputs using received SNMP trap information. The user can configure each relay to operate or release based on the enterprise, generic-trap, and specific-trap information of an SNMPv1 trap or the trap OID of an SNMPv2c trap. Each SNMP trap can also be defined by an optional variable binding.

This telco-grade RTU is housed in a durable aluminum chassis that uses one standard rack units for mounting.

Form Factor

  • Height: 1.72"
  • Width: 17"
  • Depth: 7.38"
  • Mounting:
  • Weight: 3.4 lbs

Core Features

  • Audio Outputs: 16
  • Control Relays: 48
  • Current draw: 600 mA @12 Vdc
  • Fuse: 1 Amp GMT Fuse
  • LED status indicators
  • Ping Targets: 64
  • Power Input: Dual
  • Power Supply: +12Vdc
  • RoHS: 5/6
  • Web Browser Interface

Operating Conditions

  • Humidity: 0-95% NC
  • Temperature: 32 to 140F (0 to 60C)

Optional Features

  • Current draw: 150mA @ 48 Vdc, 300 mA @ 24 Vdc
  • Rack Ears: 19-inch, 23-inch

Hardware/Installation Manual

No additional software.

Explore different capacities

d-pk- d-pk- d-pk-netg5 832A d-pk-netg5 864A d-pk-
Product Name NetGuardian 420 NetGuardian 240T Trap 48 RA NetGuardian 864A G5 NetGuardian 480 G4
Alarm Count 20 40 32 64 80
Analogs 4 2 8 8 4
Comparison Roughly half the capacity. Adds T1 transport. - Double capacity in same 1RU Massive discrete capacity.
