Modbus to SNMP Converter

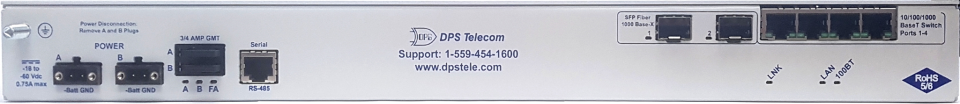

/products/rtu/d-pk-modbx/media/back-panel-960.png
/products/rtu/d-pk-modbx/media/back-panel-960.png
*Click an image to enlarge

The Modbus to SNMP Converter is a dedicated mediation device that will help you connect your Modbus-enabled equipment to your SNMP manager.


Key Features

  • 1 D-Wire sensor input jack, supporting up to 15 sensors.
  • Support for up to 128 total registers and Serial Modbus RTU data collection.
  • Fast, integrated web browser.

The Modbus to SNMP Converter device is a dedicated mediation unit. It is able to poll up to 128 Modbus registers and convert that alarm data to SNMP traps. In this way, you can connect your Modbus equipment (like many common generators) to your SNMP manager in a way that would otherwise be impossible.

Because the Modbus to SNMP Converter is built on the NetGuardian RTU platform, you get many of the same firmware and hardware benefits. Even though the Modbus Converter does not have support for traditional discrete alarm points or analog inputs, it has a proven industrial design with a variety of handy firmware features, such as notifications, analog thresholds, etc. It also includes a D-wire port, allowing you to daisy-chain up to 16 compact sensors to monitor temperature, humidity, airflow, and other important environmental levels.

Form Factor

  • Height: 1.75"
  • Width: 19"
  • Depth: 7.12"
  • Mounting:
  • Weight: 3.13 lbs

Core Features

  • Craft port: 1 serial port
  • D-Wire: 1-Plug
  • Fuse: 3/4 Amp GMT
  • Internal Temp Sensor
  • LED status indicators
  • NIC: Four 10/100/1000 BaseT
  • Power Input: Dual
  • Power Supply: -24/48Vdc (wide range)
  • RoHS: 5/6
  • Serial Port: RS485
  • SFP Fiber Interfaces: 2
  • Web Browser Interface

Operating Conditions

  • Humidity: 0-95% NC
  • Temperature: 32 to 140F (0 to 60C)

Optional Features

  • Rack Ears: 19-inch, 23-inch
No additional software.
