NetGuardian M16 G2

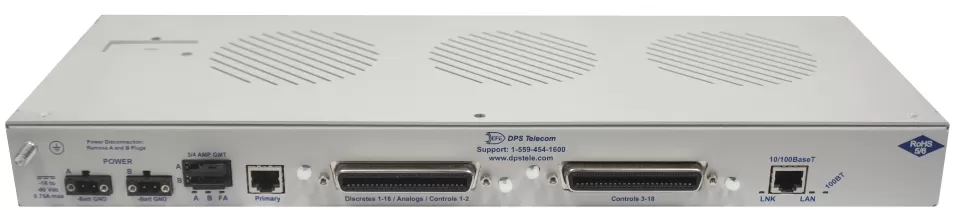

/products/rtu/d-pk-m16g2/media/back-panel-960.png
/products/rtu/d-pk-m16g2/media/back-panel-960.png
*Click an image to enlarge

The NetGuardian M1 6 G2 is an effective way of monitoring medium sites with up to 16 discrete alarms and an integrated analog temperature sensor. You will receive alarms via SNMP.


Key Features

  • 6 analogs (4 general purpose, 2 battery monitoring)
  • 2 or 18 Form C relays (depending on your build option)
  • 16 discrete alarms - Monitor a wide variety of digital inputs
  • 32 ping targets - You'll be notified when critical equipment goes offline
  • Convenient and secure web browser interface using HTTPS

The NetGuardian M16 monitors 16 contact alarm points and reports them to your SNMP manager via LAN. The NetGuardian M16 G2 also has 6 analog inputs, 32 ping targets, and 2 or 18 control relays (depending on build). When used with a DPS master station, the unit also has TRIP dialup backup reporting path for extra reliability in instances that LAN connection is lost or unavailable.

Alarms can be reported via email or via SNMP traps (to T/Mon, DNP3 masters, or SNMP trap managers). This medium-capacity device features a versatile array of notification methods to guarantee an alarm never goes unnoticed.

This device has the alarm coverage you need to monitor your small and medium sites. The notification methods ensure you can respond to potential network disruptions before your network goes down.

Other benefits of M16 G2:

  • Flexible design for medium sites
  • 16 D-Wire sensors (1 reserved for internal temperature) with history logging
  • 33.6k modem supports data and voice
  • Supports RADIUS Authentication
  • Cellular option (GSM or CDMA)
  • Convenient and secure web browser interface using HTTPS
  • A RS232 port for terminal server / reach through access
  • Dual -48VDC Power Supplies
  • Free LIFETIME firmware upgrades

Form Factor

  • Height: 1.7"
  • Width: 17"
  • Depth: 6.6"
  • Mounting:
  • Weight: 0 lbs

Core Features

  • Analog Alarms: 6
  • Control Relays: 2
  • D-Wire: 1-Plug
  • Discrete Alarms: 16
  • External Speaker
  • NIC: 10/100BaseT
  • Ping Alarms: 32
  • Power Input: Dual
  • Power Supply: -48Vdc
  • Rack Ears: Both
  • RoHS: 5/6
  • Web Browser Interface

Operating Conditions

  • Humidity: 0-95% NC
  • Max. Current: 1 Amp, AC/DC
  • Max. Voltage: 60VDC / 120VAC
  • Temperature: 32 to 140F (0 to 60C)

Optional Features

  • Cellular Capabilities
  • Power Supply: +24Vdc, -24Vdc
  • Rack Ears: 19-inch, 23-inch
  • RTC
No additional software.
