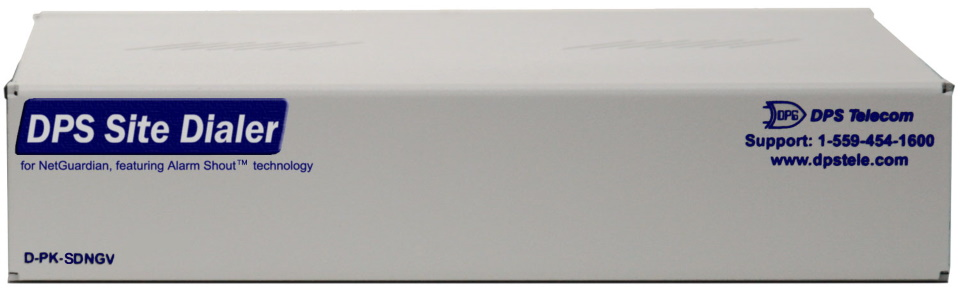

DPS Site Dialer For NetGuardian

The DPS Site Dialer allows you to receive and acknowledge alarm notifications from the field with custom voice alerts. The Site Dialer is supported by all your NetGuardian 832A and 864A RTUs.

When an alarm is triggered, the DPS Site Dialer calls up to 8 phone numbers in your call lists with the site name, alarm status, timestamp, and more. You'll use the custom voice wizard in MyDPS to create your text-to-speech alarm notifications, or upload your own .WAV files.

Important benefits of the Site Dialer:

• Calls your home phone or cell using standard POTS line
• Accepts TCP commands from other devices to send out voice alerts
• Up to 255 alarm points can databased with custom voice alerts
• Alarm Shout technologyTM - Use the DPS online text-to-speech tool or upload your own .WAV files
• Notifies up to 8 people in 4 call lists per alarm point
• Supports all NetGuardian 832A and 864A platforms - No firmware changes needed
• Also supports SNMPv1 and sends email notifications
• "Scheduling" feature lets you choose the exact day / time you want to receive alerts
• Alarm escalation and your priority settings mean the right people get the most critical alerts first
• Great for poor paging coverage areas

Form Factor

• Height: 1.7"
• Width: 17"
• Depth: 0"
• Mounting:
• Weight: 0 lbs

Core Features

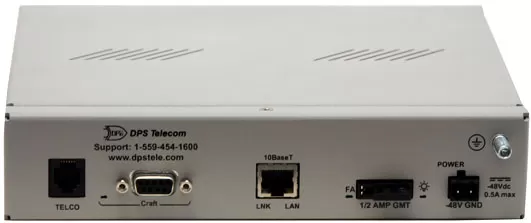

• Connector types: DB9 port
• NIC: 10BaseT
• Power Supply: -48Vdc
• Web Browser Interface

Operating Conditions

Optional Features

• Mounting: Wall mount
• Rack Ears: 19-inch

Product Sheet

Hardware/Installation Manual

No additional software required.

Use the built-in web interface for configuration. Monitor via web interface, your SNMP manager, or a T/Mon master station.
