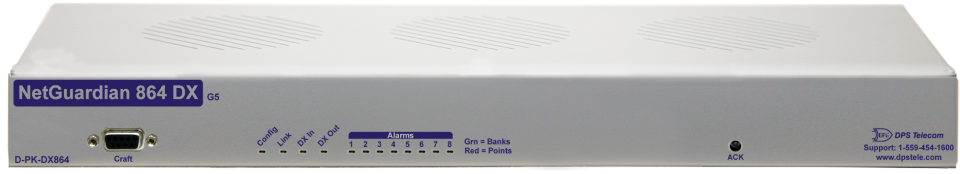

NetGuardian 864 DX G5

*Click an image to enlarge

Each NetGuardian Discrete Expansion unit gives you an additional 64 alarm points and 8 control relays to extend the capacity of your NetGuardian 864A G5.

Key Features

  • 8 analogs per expansion
  • Up to 8 additional relay contact closures
  • 64 ground-activated discrete alarms per expansion
  • Convenient alarm viewing and configuration via the NetGuardian’s Web Browser
  • Economic way to increase alarm capacity

The NetGuardian DX G5 Expansion Units are low-cost, self-contained devices that provide compatible NetGuardian series remotes with additional ground-activated discrete alarms, analog alarms, and control relays. With the NetGuardian DX expansions, your NetGuardian RTU can scale to the needs of your site, so you don't have to deploy new RTUs as your needs grow.

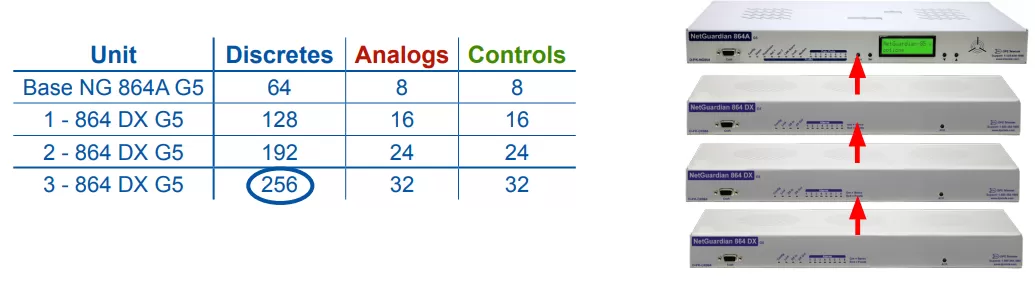

Adding up to 3 NetGuardian 864A DX expansion units to your compatible NetGuardian RTU will increase your capacity by 192 discrete points, 32 analog inputs, and 32 control relays. Each unit is equipped with dual RS232 ports for easy installation and daisy-chaining.

Benefits of NetGuardian 864 DX G5:

  • This is a low-cost method of expansion to existing NetGuardian units
  • It gives additional capacity over existing communication lines
  • You'll have more alarms reported from the same address
  • It allows you to expand at your own pace

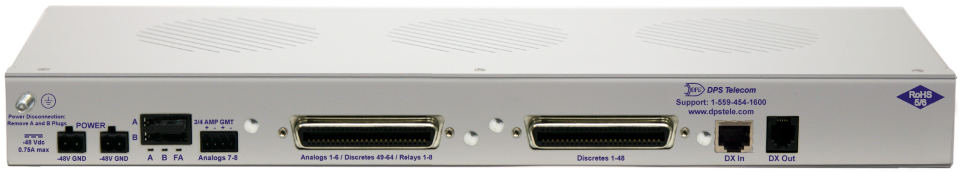

  • RS232 ports allow for easy daisy chaining between units
  • LED indications of alarms and communications status

Form Factor

  • Height: 1.72"
  • Width: 17"
  • Depth: 8.1"
  • Mounting:
  • Weight: 3 lbs

Core Features

  • Analog Alarms: 8
  • Control Relays: 8
  • Discrete Alarms: 64
  • Fuse: 3/4 Amp GMT
  • Power Input: Dual
  • Power Supply: -48Vdc
  • Serial Port: RS232

Operating Conditions

  • Humidity: 0-95% NC
  • Max Current: 3/4 Amp, AC/DC
  • Max. Voltage: 60VDC / 120VAC
  • Temperature: 41 to 95F (5 to 35C)
No additional software required.

Use the built-in web interface for configuration. Monitor via web interface, your SNMP manager, or a T/Mon master station.
