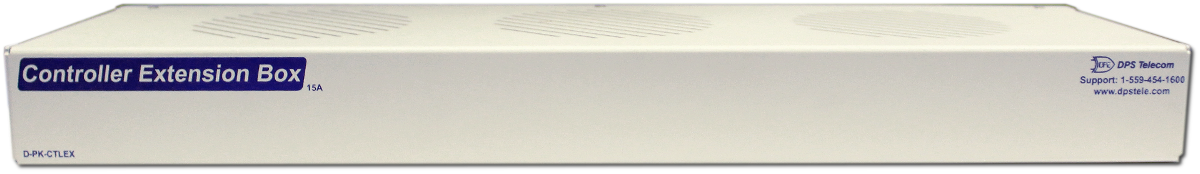

Controller Extension Box

*Click an image to enlarge

The Controller Extension Box allows you to control power outputs to all of your external devices.

Key Features

  • 60 Vdc max or 15A max switching capabilities
  • Extended support for 4 relays
  • Supports switching for either positive or negative voltages (relative to RTN)

The Controller Extension Box is a compact relay box used to control power outputs. The unit is designed as a hardware accessory to complement the NetGuardian and enables relays from a single piece of equipment to control the power output into multiple devices.

The Controller Extension Box is created to support high power-switching applications and enables the user to switch devices remotely on and off without visiting the site. This device is designed for straightforward installation, making it cost-effective and convenient to control the power of your entire network.

Form Factor

  • Height: 1.7"
  • Width: 17"
  • Depth: 6"
  • Mounting:
  • Weight: 2.87 lbs

Core Features

  • Current draw: 50mA
  • Fuse: Inline Fuse (Internal)
  • Power Supply: -48Vdc
  • RoHS: 5/6

Operating Conditions

  • Humidity: 0-95% NC
  • Temperature: 32 to 140F (0 to 60C)

Optional Features

  • Mounting: Wall mount
  • Rack Ears: 19-inch, 23-inch
No additional software.
