Current Measurement

Related Topics:
Battery Management

An integral part of a good battery management system are the actual battery and current sensors. Battery current sensors typically come in two varieties: discrete and analog. There are some key differences you'll need to know if you want to avoid the headaches associated with the wrong current measurement sensor.

First, you'll encounter discrete or dry contact closure sensors. These kinds of sensors latch and release a contact closure, giving it the capability to report "yes" or "no" (or "on" or "off") information. These kinds of sensors are great for monitoring certain conditions - if a door is open, if a motion sensor gets triggered, etc. However, they leave something to be desired when it comes to measuring something continuous (like battery voltage or temperature).

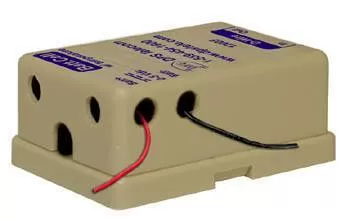

D-Wire Sensor Node
The D-Wire Battery Cell outputs live analog data at 4-20mA and is perfect for monitoring battery voltage and current.

That's where the power of analog sensors comes in. These sensors, instead of featuring a dry contact closure for triggering alarms, measure precise voltage or current flow through its pins. An analog sensor is continuously outputting the current or voltage that reflects the value that's being monitored (electrical current, voltage, or temperature, for example).

With a good battery monitoring device, you'll be able to specify which voltages/currents correspond to which value for what is being monitored (for example: 0v = 0 degrees and 5v = 130 degrees). This allows you to define what will trigger an alarm - not a one-size-fits-all solution out of the box. Customized reference/threshold values give you complete control over your battery management system.

D-Wire Sensor Network
The popular D-Wire sensors allow you to keep tabs on environmental and battery conditions like never before. Each D-Wire sensor node can be daisy chained from a single D-Wire port for an easy and simple setup. The sensors use an RJ11 connection and are plug 'n' play design - so you can spend more time monitoring and less setting up.

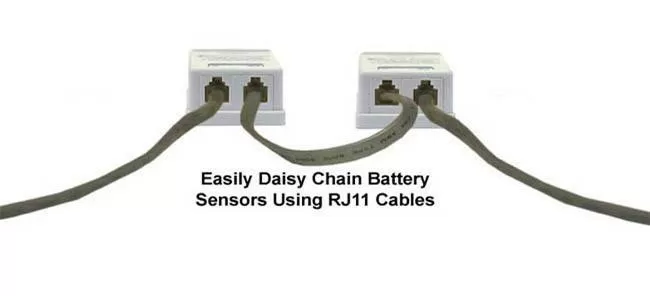

Daisy Chain Sensors
With daisy-chainable sensors and a plug 'n' play design - the D-Wire sensors and BVM 48 G2 are the easy way to monitor your battery cells.

D-Wire sensors allow you to monitor critical analog conditions to keep your network online - battery voltage, temperature, and humidity. These sensors are the perfect match with the BVM 48 G2 battery voltage monitoring system.

By combining the daisy-chainable D-Wire sensors with the power of the BVM 48 G2, you'll have the complete solution for monitoring your battery cells and protecting your uptime.

Battery Voltage Monitoring Devices:

The BVM 48 G2
