The E1 WAN Mux

Effective and easy-to-install
The T1/E1 WAN Mux is a device used in conjunction with the VLAN Router and the NetGuardian G5's T1/E1 interface. There is one ethernet port and sixteen T1/E1 ports. This device will take the tagged ethernet packets from the VLAN router and route the packets to one of the sixteen T1/E1 ports by checking the VLAN tag. The T1/E1 will also monitor each WAN port for possible errors with the connection. This industrial-grade equipment is housed in a durable aluminum case. This device may be purchased in two different models: T1 or E1.

Upgraded Web Interface
The overhauled web interface boasts several time-saving new tools. Menus load quickly and the alarm status updates automatically without requiring a page refresh. Firmware upgrades are also supported using the web interface.

T/Mon Integration
The T1/E1 WAN Mux supports DCP/IP protocol so your T/Mon master station may monitor a critical piece of equipment along with gathering status information about the individual T1/E1 ports.

Full Specifiacations

T1/E1 WAN Mux

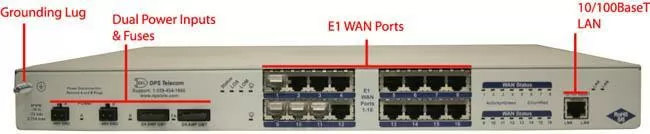

The back panel of the T1/E1 WAN Mux.
Full Specifications
Dimensions: 1.72"H x 17"W x 9.636" D
(4.4cm x 43.18cm x 24.48cm)
Weight: 4 lbs. 3oz. (1.9 kg)
Mounting: 19" or 23" rack mount (1 rack unit)
Power Input - Voltage Options Include: -48 VDC (-36 to -72 VDC)
(Optional +24 VDC (18V to 36 VDC)
(Optional -24 VDC (-18 to -36 VDC)
Power Input - Current Draw: 220 mA @ -48 VDC
Power Input - Fuse: 3/4 Amp GMT Fuse, if -48V or -24V Power Input
Interfaces: 1 RJ45 10/100BaseT Ethernet port
1 DB9 front-panel craft port
16 T1/E1 Ports
Visual Interface: 2 Front panel LEDs
28 Back panel LEDs
Operating Temperature: 32 to 140 degrees F (0 to 60 degrees C)
Operating Humidity: 0%-95% non-condensing
RoHS 5 5/6

Ordering Options

The T1/E1 WAN Mux can be purchased in two different models:
T1/E1 WAN Mux
The E1 Model.
or the:
T1/E1 WAN Mux
The T1 Model.
