How the Smarter, Faster NetGuardian G5 will Take Your Monitoring to the Next Level

If you're looking to equip your remote sites with monitoring technology that will keep up with your network, you're at the right place.

The NetGuardian G5 boasts several enhancements from previous NetGuardian models. These include:

  • advanced hardware
  • increased processing speed
  • enhanced security options

The NetGuardian G5 is available with 32 (832A) or 64 (864A) discrete alarm points.

NetGuardian G5
The Powerful NetGuardian G5

The higher speed processor allows you to process alarms faster than ever before. This new processor will provide you with significantly faster web page views. It also supports more processor-intense functions. You can perform advanced monitoring tasks with your NetGuardian 832A G5 RTU (Remote Telemetry Unit).

DPS has also expanded the memory capacity of the new NetGuardian. The NetGuardian G5 has more RAM and flash memory than any existing generation of NetGuardian. This allows you to give your RTU (Remote Telemetry Unit) substantially more functionality. The additional memory space allows for future firmware upgrades. This also allows you to utilize the NetGuardian 832A G5 for the implementation of security functions. This is key at security-conscious organizations.

These features add increased functionality to the existing powerful features of the NetGuardian 832A remote family. These existing features include 8 controls relays, 8 analogs inputs, and 32 discrete alarm inputs. They are handy for monitoring all of your important discrete and analog alarm points. The remote is also packed with 32 ping alarm inputs and dual NICs. You also get a 10/100 switch (optional) and your choice of power-input voltages. This allows you to customize your NetGuardian RTU (Remote Telemetry Unit) to meet the needs of your network sites.

All of these features have been integrated into the NetGuardian 832A's new case design. It includes general improvements as well as more specific new features. Now, the NetGuardian G5 casing allows you to adjust the NO/NC Form-C relays and your analog's voltage/current settings more easily. You don't have to take the top off of the chassis. You can use the NetGuardian G5's convenient access panels.

Along with the new casing, the NetGuardian 832A G5 also provides you with new connectivity options. Now, the NetGuardian RTU (Remote Telemetry Unit) provides a 10/100 BaseT Ethernet interface for both network ports. It also provides you with dual fuses for dual power in your NetGuardian deployment. With separately fused A and B power feeds, the NetGuardian 832A G5 also provides you with easy installation and turn-up.

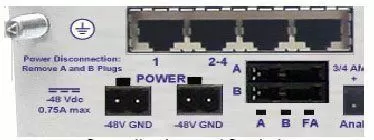

NetGuardian G5 back panel
The next-generation of NetGuardian offers you dual fuses. The A and B power feeds are separately fused.

An additional RS485 port has also been added to the NetGuardian 832A G5. This allows you to interface your remotes to the GLD and ECU. This added serial port provides you with even more terminal server functionality. You can combine it with the eight existing RS232 ports provided in the previous generation of NetGuardian.

The NetGuardian 832A G5 also gives you new build options to maximize your analog monitoring. The new generation offers you an external temperature sensor build option. This option uses one of the eight analog channels of the NetGuardian.

Outside of the hardware upgrades, DPS has also improved the NetGuardian 832A G5's NetLoader download machine. This new version is designed to work better on your busier networks. With improved error checking, you'll also be notified with greater consistency. When packets don't get through the communications network, you'll know.

DPS Telecom is proud to offer the new NetGuardian 832A G5. It's continuation of their commitment to superior client service. This RTU was designed with client-requested features in mind. The new NetGuardian 832A will give you increased functionality. This increases your network uptime and makes your job easier.

To receive a price quote or ROI analysis, call 1-800-693-0351.
