NetGuardian WSD Overview

NetGuardian WSD
Monitor critical equipment and conditions at your remote sites with the NetGuardian WSD

Monitor 16 discrete alarm points and 3 analogs with the NetGuardian WSD. All three of the analog inputs are user-definable - so you can monitor any live analog condition at your site. This device can report alarms to a DPS master station (T/Mon) or other SNMP managers (HP OpenView, etc) via LAN.

With 4 DPDT control relays, you'll now have the ability to remotely control gear at your sites. Reduce costly truck rolls with the ability to reboot jammed equipment, open doors, or turn devices on/off (that are normally operated by a button or a switch) - all right from the Netguardian WSD's web interface.

NetGuardian WSD features include...

Note: This device requires a minimum order.

Full Specs

NetGuardian WSD

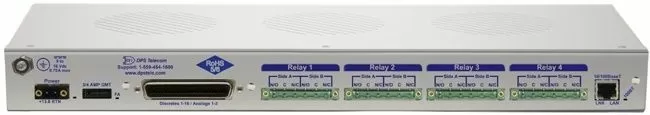

The NetGuardian WSD back panel.
Full Specifications
Discretes: 16.
Analogs: 3 user-definable.
Controls: 4 DPDT.
Clock: Real-time.
Interfaces: 1 10/100BaseT LAN port.
1 50-pin Amphenol connector.
1 DB9 Craft port.
Power Input: +13.6 VDC.
Fuse: 3/4 Amp GMT.
Visual Interface: 25 Front panel LEDs.
3 Back panel LEDs.
Mounting: 19" or 23" rack.
Rack Space: 1 RU.
Operating Temperature: 32 - 140 degrees F (0 - 60 degrees C).
Operating Humidity: 0 - 95% non-condensing.
RoHS: 5/6.
