Modbus Proxy

*Click an image to enlarge

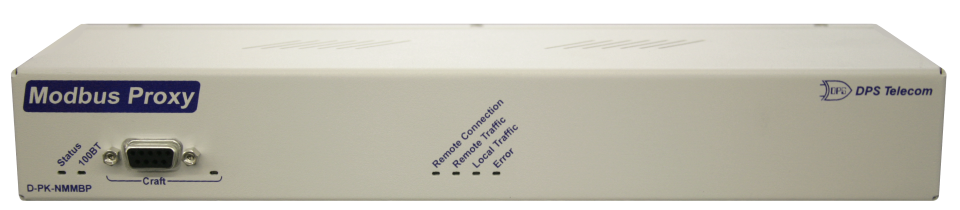

The Modbus Proxy unit allows you to keep track of up to fifty devices without creating holes in your firewall.

Key Features

  • No need to compromise your firewall
  • Supports up to 50 Modbus devices
  • Route multiple Modbus communications
  • Built-in web interface to monitor from any PC on the network

Have you ever needed to monitor multiple Modbus devices through your firewall? With the Modbus Proxy, you can. The Modbus Proxy unit provides communication to multiple Modbus devices behind a firewall. Simply install this unit and configure your settings on one easy-to-use web interface.

With the built-in web interface, you'll be able to log on to the Modbus Proxy from anywhere on the network to edit your proxy settings. Need to add another device? Want to check which port you're connecting to? Handle all of this - right from your network PC.

Other benefits of the Modbus Proxy device include:

  • Plug 'n' Play design - start monitoring in minutes
  • Connects into your existing network
  • Telco-grade casing for enhanced durability
  • Small form-factor saves on valuable rack space

Form Factor

  • Height: 1.72"
  • Width: 11.5"
  • Depth: 4"
  • Mounting:
  • Weight: 1.5 lbs

Core Features

  • Craft port: 1 serial port
  • Local connections: 50
  • NIC: 10/100BaseT
  • Power Supply: +12/+24
  • Rack Ears: 19-inch
  • Web Browser Interface

Operating Conditions

  • Humidity: 0-95% NC
  • Temperature: 32 to 140F (0 to 60C)

Optional Features

  • Mounting: Wall mount
  • Power Supply: -48Vdc
No additional software required.

Use the built-in web interface for configuration. Monitor via web interface, your SNMP manager, or a T/Mon master station.
