The ModbusProxy provides communication to multiple Modbus devices behind a firewall...
- Plug 'n' Play design - Start monitoring in minutes
- No need to compromise your firewall
- Route multiple Modbus communications
- Connects into your existing network
- Telco-grade casing for enhanced durability
- Built-in web interface to monitor from any PC on the network
- Supports up to fifty Modbus devices
- Small form-factor saves on valuable rack space
Have you ever needed to monitor multiple Modbus devices through your firewall?Keep track of up to fifty devices with the ModbusProxy unit without creating holes in your firewall. Simply install this unit and configure your settings on one easy-to-use web interface.
With the built-in web interface, you'll be able to log on to the ModbusProxy from anywhere on the network to edit your proxy settings. Need to add another device? Want to check which port you're connecting to? Handle all of this- right from your network PC.
DPS Telecom products are telco-grade and built on technology that has proved itself in thousands of successful implementations. DPS gear is deployed on all seven continents, in industries such as: Telecommunications
AT&T, Nextel, T-Mobile, Verizon
Hewlett Packard, Lucent Technologies, Motorola, Nortel
Duke Energy, Florida Power, Niagara Mohawk, Sierra Pacific Power
Keep track of up to fifty devices with the ModbusProxy unit without creating holes in your firewall.

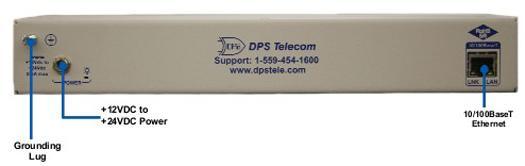

|Interfaces||1 10/100BaseT Ethernet port |
1 Craft Serial Port
|Protocol||Modbus, HTTP, HTTPS|
|Dimensions||1.720" H x 11.5" W x 4" D|
|Mounting||19" rack, wall mount|
|Power Input||+12VDC to +24VDC or -48V|
|Current Draw||150mA @ +12DC |
75mA @ +24DC
|Operating Temp.||32 to 140 degrees F (O to 60 degrees C)|
|Operating Humidity||0% to 95% non-condensing|
The ModbusProxy can be configured through the TTY interface via craft port, or through the easy-to-use web interface. This allows the ModbusProxy to easily be configured through any computer on your network.
The ModbusProxy can be configured with the easy-to-use Web interface.
Modbus device ID, TCP port, and IP address can easily be added and configured in the web interface.
Configure the remote TMon in the ModbusProxy's web interface from any computer on the network.
| || |
