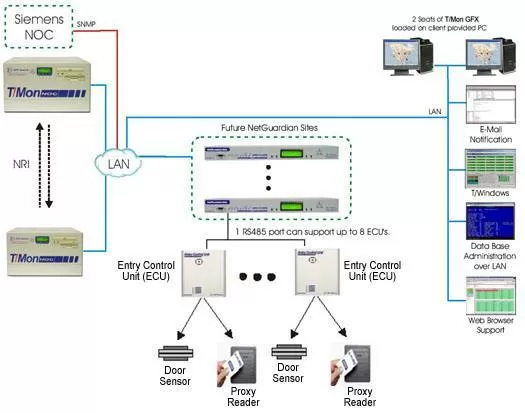

This application will address your remote site alarm monitoring and building access control, as well as centralized monitoring & notifications at an element manager layer and mediation to your Siemens management platform. The topology features a redundant T/Mon NOC configuration, monitoring all your remote sites with NetGuardian 864, as well as a variety of environmental sensors and building access monitoring.
The T/Mon NOC will perform many critical functions such as collecting, filtering, categorizing & present your alarms, maintaining history, alphanumeric paging and e-email notification. One of the most powerful features of the T/Mon NOC is its ability to mediate alarms to other protocols. Here you'll see the SNMP responder module that will provide alarm visibility at other locations for your siemens or other SNMP mangaer.
The T/Mon NRI software module and redundant master are crucial for your network disaster recovery plan. In the event you lose your primary hard drive, the T/Mon NOC will automatically fall back to the secondary hard drive. In addition, the T/Mon NOC supports a modular interface design. This design allows us to semi-customize each T/Mon NOC for deployments in diverse network architectures.
The SNMP Agent Software module will give the T/Mon Master Station the ability to convert incoming TL1 alarms to SNMP and ultimately send the alarms via SNMP to your siemens SNMP Manager. This software module supports traps, as well as query and control commands.
The T/Mon NRI Synchronization Software Module will be used to synchronize databasing between T/Mon systems in a redundant HOT standby application. This software will allow the two systems to communicate over LAN so that the secondary system will have current status of standing alarms and COS's as the primary master processes them. In the event of a primary failure, the secondary will assume monitoring responsibility and will present to the user current alarm information. Please note: For the Synchronization requires 1 software module on each of the T/Mon system.
The Building Access System Software Support Module will provide you with support for the Building Access System. This software module will give you database management of users, security codes and access times. The building access history will also be maintained to keep a history of events. This system will also provide site occupancy status at any time.
