Create a MOM System Incorporating SNMP and Non-SNMP Network Elements

Previous Page: SNMP Solutions Cookbook
PDFDownload White Paper
Tmon noc system

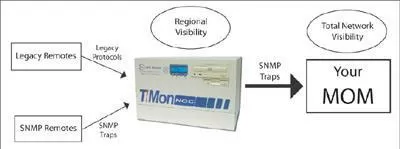

Fig. 1. With support for over 20 protocols, T/Mon NOC can monitor all your network equipment.

Problem

  • Need to monitor both SNMP and non-SNMP equipment.
  • Need to consolidate monitoring of legacy and modern networks.
  • Inherited mixed collection of mutually incompatible equipment from predecessors.
  • Inherited incompatible alarm systems from merger/acquisition of another company.

Solution

T/Mon NOC consolidates all your equipment, regardless of protocol or manufacturer, to one platform, giving you a single-screen view of all your network equipment. T/Mon NOC supports over 20 different protocols, including SNMP, TL1, TABS, TBOS and many proprietary protocols. (For a full list, see Appendix).

Because of its support for multiple protocols, T/Mon NOC can monitor hundreds of different devices. For every protocol it supports, T/Mon NOC supports every device that uses that protocol - and you're not charged extra probe fees for supporting multiple devices. It doesn't matter what the size of your integration issue is. Whether you have a few incompatible systems, or you need to consolidate two entirely separate networks, T/Mon NOC will give you a seamless view of all your equipment.



T/Mon NOC Local Alarm Master

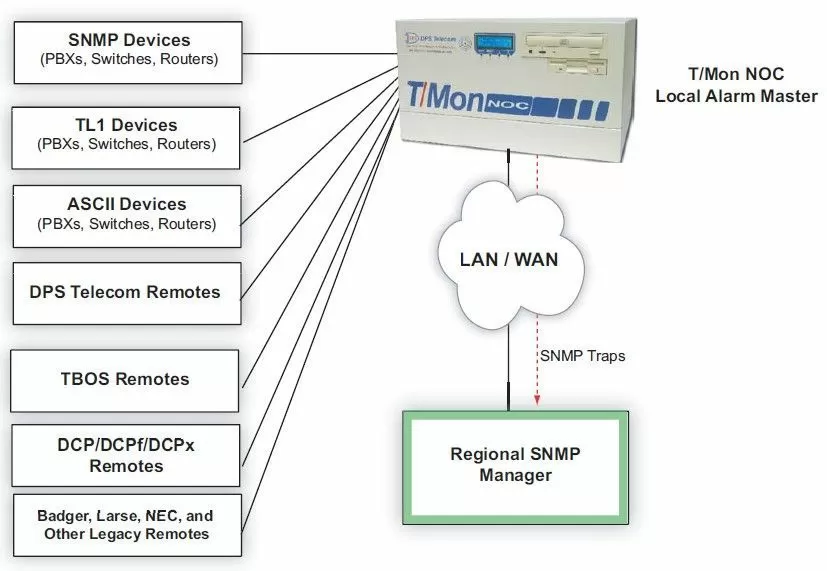

Fig. 2. T/Mon NOC can act as a local NOC that collects alarms from local remote sites and mediate all alarms to SNMP traps that are forwarded to the SNMP manager at the regional NOC.

Create a Local NOC for Local Visibility Within an SNMP Network

Problem

  • Relying on a distant regional NOC for alarm notifications gives you limited visibility and prevents timely repairs of remote site problems - ultimately increasing downtime and maintenance costs.

Solution

T/Mon NOC can serve as both an alarm collector and alarm forwarder. Alarms within your local area can be collected to your T/Mon NOC using any of T/Mon's supported input protocols. You have real-time visibility of all your equipment, giving you the power to proactively monitor your remote sites and correct problems early.

While collecting alarms at the local level, the T/Mon NOC will simultaneously forward your alarms in SNMP (or in TL1, ASCII, TABS, TBOS or other output protocols) to your central regional NOC. From the regional NOC's point of view, it's no different than if the local alarms had been send directly.

Another advantage of this setup is that you can selectively filter which alarms will be forwarded to the regional NOC. You can have an alarm for everything you need to see locally, down to very granular detail, without overwhelming the regional NOC with a cascade of alarms.



Mediate Non-SNMP Alarms to SNMP

Problem

  • Need to monitor non-SNMP equipment from your SNMP manager.

Solution

T/Mon NOC's alarm collecting and alarm forwarding capabilities combine to create a protocol mediation solution. T/Mon collects the alarms in their original protocol, mediates them to SNMP traps, and forwards the traps to your SNMP manager.

Any alarm that T/Mon collects can be mediated to an SNMP trap. Once again, you can filter which alarms T/Mon forwards, so you only see the alarms you want to see.



Mediate SNMP Alarms to TL1

Problem:

  • Need to monitor SNMP equipment from your TL1 manager.

Solution

T/Mon NOC can also mediate alarms to any of its supported output protocols, including TL1. T/Mon NOC will collect alarms from SNMP devices or any other supported equipment. It will mediate the alarm inputs to TL1 autonomous messages, forwarded to your TL1 manager.



Filter Nuisance Alarms

Problem

  • Alarm system reports every unimportant status alarm, conditioning users to ingnore alarms.

Solution

T/Mon NOC offers several features to filter nuisance alarms:
Alarm Qualification: if problems are self-correcting, you might not need to know about them. You can filter these alarms by using an alarm qualification time that sets how long the alarm condition must be in effect before an alarm is declared.
Alarm Silencing: alarms that oscillate and create a lot of alarm activity can be silenced for a specified length of time.
Alarm Tagging: oscillating alarms can also be tagged to stay silent until untagged.
No Log: alarms that are simply not important do not even need to appear on the monitoring screen. The alarm report goes straight to the history file, where it is recorded and can be retrieved later for analysis, if necessary.


Send TBOS Alarms Directly to Your SNMP or TL1 Manager

The NetMediator is like an RTU (Remote Telemetry Unit) on steroids - it does everything the NetGuardian 832A does, and then some. It's a full-featured alarm collector and protocol mediation device in one. You can mediate and monitor, saving you the expense of buying additional RTUs.

Protocols: SNMP, TL1, TBOS

Mediation: 8 TBOS displays to SNMP or TL1

Discrete Inputs: 32

Analog Inputs: 8 (voltage/current)

Analog Input Range: -70 to 94 VDC or 4 to 20 mA

Control Outputs: 8

Maximum Voltage: 60 VDC/120 VAC

Maximum Current: 1 Amp, AC/DC

Interface:
4 RS-422/RS-485 TBOS ports
4 RS-232 serial reach-through ports
2 50-pin connectors
1 4-pin connector
1 RJ45 10BaseT Ethernet port
1 RJ11 POTS jack
1 DB9F craft port

Visual Interface: 18 LEDs, LCD display

Dimensions: 1.75"H x 17"W x 12"D (4.5 cm x 43.2 cm x 30.5 cm)

Weight: 4 lbs. 3 oz. (1.9 kg)

Mounting: 19" or 23" rack

Power Input: +24 VDC

Current Draw: 200 mA

Fuse: 0.75 Amp GMT

Operating Temperature: 32°-140° F (0°-60° C)

Operating Humidity: 0%-95% noncondensing
