ATS: Full Specifications

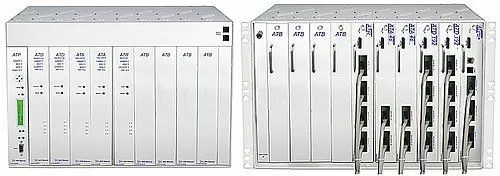

Advanced Telemetry System 10 Position Shelf
You can design a system to meet your exact needs. And when your needs change, the ATS changes with them.
Advanced Telemetry System Full Specifications
Dimensions: 12.25 in H x 17.125 in. W x 12 in. D
(31.1 cm x 43.5 cm. x 27.9 cm.)
Mounting: 19" or 23" rack
Power Input: -48 VDC (-40 to -70 VDC)
Current Draw: 3 Amps
Operating Temperature: 32 degrees to 140 degrees F (0 degrees to 60 degrees C)
Operating Humidity: 0% to 95% non-condensing
Advanced Telemetry Discrete Card Full Specifications
Base Capacity Model: 96 discrete inputs
High Capacity Model: 192 discrete inputs
Advanced Telemetry Analog Card Full Specifications
Base Capacity Model: 48 analog inputs
High Capacity Model: 96 analog inputs
Input Resolution: 12 bit
Input Type: Voltage (-90 VDC to +90VDC)
or Amperage (4 mA to 20 mA)
Advanced Telemetry Relay Card Full Specifications
Base Capacity Model: 32 Form C relay contacts
High Capacity Model: 64 Form C relay contacts
Maximum Voltage: 60VDC/120VAC
Maximum Current: 1 Amp, AC/DC
Advanced Telemetry Processor Card Full Specifications
Alarms: 96 discrete inputs
Control Relays: 16 Form C relay contacts
Interfaces: 1 DB9 craft port
1 RJ45 10BaseT Ethernet port
1 RJ11 POTS jack for internal 33.6K Modem
Protocols: SNMP or TL1 (depending on ordering options)
Audible Interface: Speaker
