T/MonXM Tip: Are you defeating the purpose of your monitoring system?

The people who need to be notified of monitoring events change on a regular basis-people quit, retire, get promoted or transferred. If you don't keep your list of first responders up to date, you'll defeat the purpose of having a network monitoring system. It does you no good to page a retiree's deactivated pager number while the new guy has no notification that something has gone wrong.

To help you keep your alarm notifications running smoothly, here's a quick guide to adding a new alphanumeric pager to T/MonXM using pager profiles.

Pager carriers, operators, and pager profiles

Let's begin with a refresher on T/MonXM terminology. Pagers are organized by pager carriers, operators, and pager profiles.

Entering a new employee

Let's suppose that you have hired a new technician named Will Totten. Will is a generator repairman and is the first person to be notified if a generator breaks down during the weekend. Here's how you would get Will assigned to the correct pager profile.

  1. Enter Will in the Pager Carriers list.

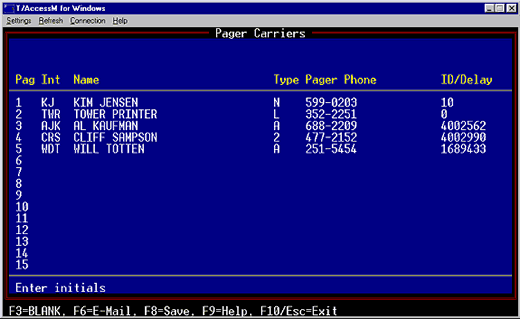

    The first step is to define Will as a pager carrier. From the T/MonXM Master menu, choose Files > Pagers > Pager Carriers. The pager carriers screen will open (see below). Enter Will's initials, name, pager type (here alphanumeric), and his pager number. Under ID/Delay, enter his page ID number (PIN).

Easily add, remove and modify pager carriers with out hassle.
Save time and be productive elsewhere.
The T/MonXM Pager Carrier screen interface lets you intuitively add, remove, and modify pager carriers from the list, in record time.
  1. Assign Will to an Operator.

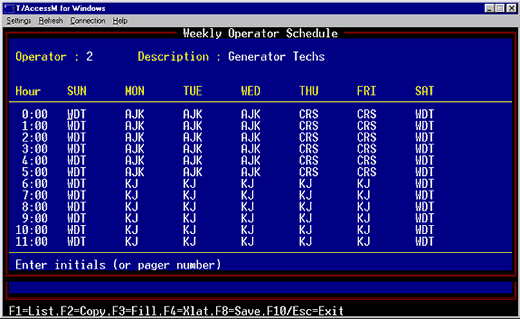

    Next, assign Will to a weekly Operator schedule. From the Pager menu, choose Weekly Schedules. Use the Find command to select the Operator schedule to which Will will be assigned. In the figure below, we've assigned Will to all weekend hours.

Always know that your team is doing its job 7 days a week.
Knowing someone is on the job can save your network someday.
The T/MonXM Weekly Operator Schedule window lets you, at-a-glance, see which operator is ready to respond to alarms for a specific day of the week.

Hint: If Will is taking over an existing shift from another technician you can use the Translate command (F4 = Xlat) to substitute Will's initials for his predecessor's throughout the schedule.

  1. Verify that Will's Operator schedule is assigned to the correct Profile.
    If Will's Operator is already assigned to a Pager Profile, all you need to do now is verify that the Profile is defined correctly. Or, if necessary, you can create a new profile defining the alarms that Will will be notified of.

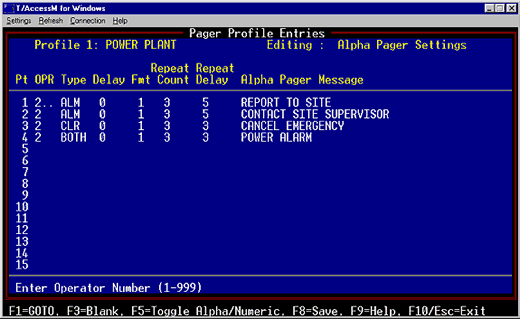

    To access the Pager Profiles screen, choose Profiles from the Pager screen. Select an existing Profile, or assign a description to define a new Profile. Press F2 to open the Pager Profiles Entry screen. (See below.)

TMonXM pager profiles are simply to configure and manipulate.
Full pager profile configuration at your finger tips.
The T/MonXM Pager Profile window allows fast and easy configuration of profiles. Get full control of all aspects of profile properties.

In the Pager Profile Entries screen you define the operator to be contacted, the type of alarm for which a message will be sent, and the alphanumeric message to be sent with the page, along with options for setting the format of the pager and repeat count and delay.

When the Pager Profile is defined, it can be assigned to any alarm from the Alarm Point Definition screen.

Be sure to keep your Pager Carriers, Operators, and Profiles up to date to reflect your current personnel roster, and you'll never have to worry that your technicians are missing service calls.

Did you find this article helpful? Is there anything you think should be added to our QuickTips coverage? We want your feedback, to help make the QuickTips Ezine a powerful resource for you! Contact us at quicktips@dpstele.com with your comments and ideas.
