Building Access System (BAS): Full Specifications

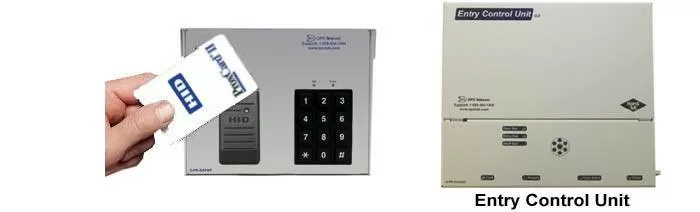

Building Access System
The Building Access System gives network alarm managers the ability to control and regulate door entry access from anywhere on their network.

Proxy Card Reader
Dimensions: 4.7" x 3" x 0.68"
Mounting: Wall mount
Power Input: 5-16VDC
Current Draw: 30 mA
Interfaces: RJ45
Protocols: Wiegand (26/37 bit)
Temperature Range: -22 to 150 degrees F (-30 to 65 degrees C)
Humidity Range: 0-95% (non-condensing)
Audible: Speaker
Visual LED

Entry Control Unit Full Specifications (G2 and G3)
Dimensions: 6.5" x 6" x 1.5"
Mounting: Wall Mount
Fuse: GMT 1/4 Amp
Power Input: -48VDC
Temperature Range: 32 to 140 degrees F (0 to 60 degrees C)
Humidity Range: 0% to 95% non-condensing
Interfaces: RS422
ECU G2: Supports Proxy Reader and Keypad (1 each)
ECU G3: Supports dual Proxy Readers (1 inside, 1 outside)

Keypad Full Specifications
Dimensions: 3" x 5" x 2.5"
Mounting: Wall Mount
Temperature Range: -40 to 176 degrees F (-40 to 80 degrees C)
Enclosure Environmentally Sealed

The DPS Building Access System is constructed from a few key parts. The Entry Control Unit (ECU) sits next to each door you want to control. It is the "brains" of your operation, accepting inputs from keypads and proxy card readers. If access should be granted, the ECU will respond by unlocking an electronic door strike or magnetic door lock.
