CellVoice 4: Specifications
The CellVoice 4 offers a low-cost way to effectively monitor your smaller sites. This compact RTU offers cellular voice dial-out and DTMF for convenient alarm notifications and acknowledgement in the field.
|Cellular Notification Options:||CDMA or GSM|
|Protocols:||SNMPv1, DCPx, TELNET, HTTP (Web), SMTP (Email)|
|Discrete Inputs:||Up to 4|
|Analog Temperature Sensors:||1 Internal, support for 1 external analog sensor probe|
|Analog Accuracy:||+/- 1% of actual value|
|Control Relays:||1 Optional Form C Relay|
1 RJ45 10BaseT Ethernet port
|Visual Interface:|| |

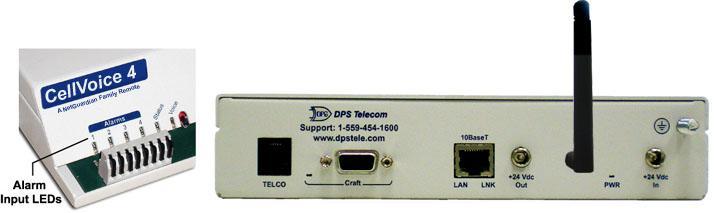

8 Firmware-controlled LEDs (Includes LED for each alarm input)
|Dimensions:||1.72"H x 8.13"W x 7.15"D |
(4.37 cm x 20.64 cm x 18.15 cm)
|Weight:||1 lb. 5 oz.|
|Mounting:||19" or 23" rack (19" and 23" extended ears available |
or single-side mount)
|Power Input:||+24VDC via 110VAC wall transformer (6.3V-34VDC), -48VDC |
3 Choices of Power Connector: Standard RIA Connector,
barrel connector, and WAGO for positive locking
|Current Draw:||100mA @ 24VDC|
|Fuse:||Resettable, internal fuse|
|Operating Temperature:||32-140 F (0-60 C)|
|Operating Humidity:||0%-95% noncondensing|
|RoHS 5 Approved||Yes|
The CellVoice 4 offers a low-cost way of effectively monitoring smaller sites. This compact RTU offers voice dial-out and DTMF for convenient alarm notifications and acknowledgement in the field..
|Wireless Connection:||GSM or CDMA|
|Discrete Points:||1, 2, or 4|
|Control Relay:||0 or 1|
|External Temperature Sensor:||Fits Stereo Plug Temp Sensor, part D-PR-998-10A-07|
|Power Options:|| |

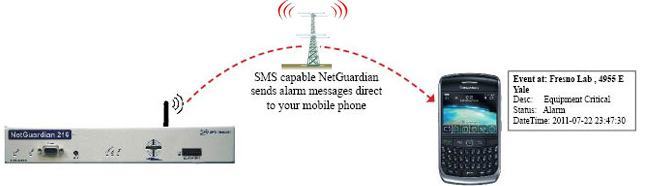

The SMS reporting option for the CellVoice 4 RTU allows you to report alarms via SMS directly to your phone.
You can also report alarms wirelessly via CDMA/GSM directly to your alarm management system with the SMS Receiver. The SMS Receiver forwards incoming SMS alarm messages as SNMP traps to your alarm master. This saves you the trouble of paying for a third party cellular data provider. You also won't be punching a hole in your firewall to receive alarms from your cellular devices.
