UPS Battery Expansion for RTUs

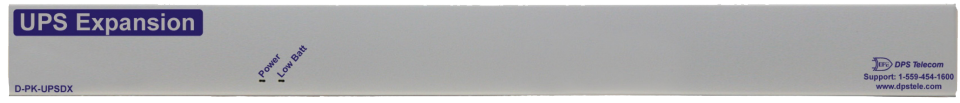

/products/accessories/d-pk-upsdx/media/front-panel-960.png
/products/accessories/d-pk-upsdx/media/front-panel-960.png
*Click an image to enlarge

Give your monitoring system true power independence with the UPS Expansion.


Key Features

  • Compatible with any DPS RTU
  • 60 hours of runtime
  • 6-8 hour charge time at -48V

Your remote monitoring system must have adequate battery backup. You may be thinking, "But I already have battery plants at my remote sites." Whether you do or not, you really need to have a dedicated UPS battery just for your alarm remote to make sure that it can continue running no matter what happens with the power at your site. The answer for that is a simple, 1 RU shelf that would contain batteries and power any DPS RTU that you plugged into it.

That's exactly why the UPS expansion has been created. This device can be used with any DPS RTU to provide over 2 days worth of battery life. With the UPS Expansion, you can give yourself a truly reliable and independent monitoring solution.

Additional benefits of the UPS Expansion:

  • Low power indicator
  • Works with +12 VDC devices
  • Occupies 1 RU shelf
  • Can be used in conjunction with a wireless modem for the most independent monitoring solution possible
  • 48 VDC input
  • Optional Dual Power

Form Factor

  • Height: 1.75"
  • Width: 17"
  • Depth: 7.5"
  • Mounting:
  • Weight: 10.2 lbs

Core Features

  • Current draw: 750mA
  • Fuse: 3/4 Amp GMT
  • RoHS: 5/6

Operating Conditions

  • Humidity: 0-95% NC
  • Temperature: 32 to 140F (0 to 60C)

Optional Features

  • LED status indicators
  • Power Input: Dual
  • Power Supply: -48Vdc
  • Rack Ears: 19-inch, 23-inch
No additional software.
