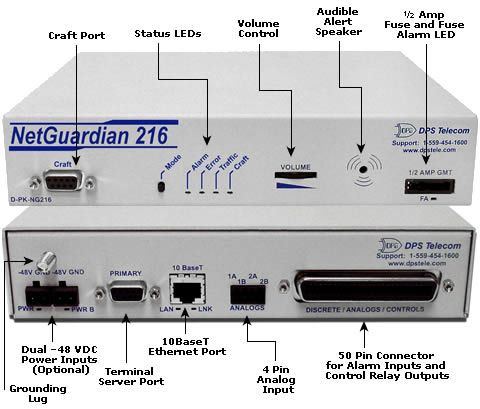

NetGuardian 216 Specifications
 |
| With the NetGuardian 216, you'll have constant visibility of your small remote site, making cost-effective use of your existing network infrastructure. |
| Protocols: | SNMP, TL1, DCP, DCPf, DCPx, DCP1 |
| Discrete Inputs: | 16 (reversible) |
| Analog Inputs: | 2 |
| Analog Input Range: | -90 to 90 VDC |
| Analog Thresholds: | 4 per analog input |
| Control Outputs: | 2 |
| Maximum Voltage: | 60 VDC/120 VAC |
| Maximum Current: | 1 Amp AC/DC |
| Interfaces: | RJ45 10BaseT Ethernet port |
| Visual Interface: | 8 LEDs |
| Audio: | Speaker with volume control |
| Dimensions: | 1.75" (1 RU) H x 8"W x 6"D |
| Mounting: | 19" or 23" rack |
| Power Input: | -48VDC (-40 to -70 VDC) (Optional) Dual -48VDC inputs (Optional) 9 VDC from 110 VAC wall transformer See options |
| Current Draw: | 50 mA |
| Fuse: | 0.5 amp GMT |
| Operating Temperature: | 32°-140° F (0°-60° C) |
| Operating Humidity: | 0%-95% noncondensing |
| Configuration and Monitoring Utility Included | |
| Downloadable Firmware via Craft Port | |
 |
|
