NetGuardian DX Expansion Unit: Grow With Your Network

Up to three NetGuardian DX Expansion Units can be added to a NetGuardian 832A, providing 144 additional alarm points.

The NetGuardian DX G4 and G5 Expansion Units are low-cost, self-contained devices that provide the NetGuardian 832A G4 or G5 with an additional 48 ground-activated discrete alarms per unit. With the capability of adding up to 3 NetGuardian DX Expansion Units, at 48 alarm points per unit, an additional 144 discrete alarms can be provided to the NetGuardian 832A G4 or G5.

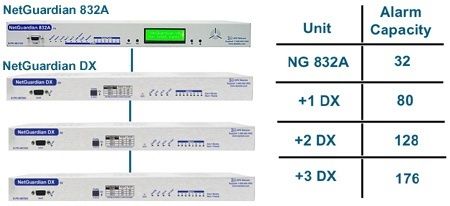

With the addition of 1, 2, or 3 NetGuardian DX units, the alarm capacity of a NetGuardian 832A can quickly be increased, up to a total of 176 alarm points.

To make expansion a simpler and less expensive task, each unit is equipped with dual RS232 ports so that Expansions can be daisy chained to one another. In this way, currently deployed NetGuardian 832As can be easily expanded.

• Low cost method of expansion to existing Net Guardian 832A units (G4 or G5)
• Gives additional capacity over existing communication lines
• Helps conserve IAM ports by reporting more alarms to the same address
• 48 ground activated discrete alarms per expansion
• RS232 ports for easy daisy chaining between units
• LED indications of alarms and communications status

Give Us a Call!

To find out more about this and other DPS applications, give us a call at our toll-free number and talk to one of our network specialists. They'll help you put together a perfect fit solution for your network!
