NetGuardian E-16: Full Specifications
| Full Specifications | |
|---|---|
| Dimensions: | 1.75" H x 17" W x 12" D |
| Weight: | 4 lbs. 3oz. (1.9 kg) |
| Mounting: | 19" rack, 23" rack, or wall mounting |
| Power Input: | -48VDC (-40 to -56 VDC) OR +24VDC option |
| Current Draw: | 250 mA |
| Fuse: | (2) 3/4 Amp GMT |
| Operating Temperature: | 41°-95° F (5°-35° C) |
| Operating Humidity: | 0%-95% non-condensing |
| Protocols: | DCPx |

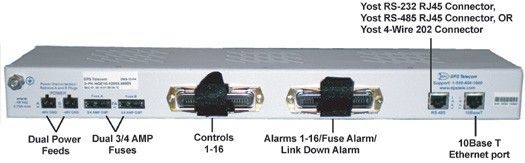

| Interfaces: | Two 50-pin connectors for discrete alarms and control relays
|
| Discrete Point Inputs: | 16 |
| Alarm Detection Speed: | Configurable to 100- 9000 msec (1/10 second to 9 seconds) |
| Control Outputs: | 16 echoed, 1 link, 1 FA16 echoed, 1 link, 1 FA |
| Visual Display: | Dual and Mono Color LED |
