Request InfoT/Mon SLIM: Full Specifications
The 1RU T/Mon SLIM fits into any 19" or 23" rack, in any telco environment, without taking space from revenue generating equipment.
| Full Specifications | |
|---|---|
| Standard Input Protocols: | DCP, DCPf, DCPx, Ping |
| Standard Output Protocols: | DCP, DCPf, DCPx | Optional Input Protocols: | ASCII, Badger, Cordell, DCM, E2A, Granger, Larse, Modbus, NEC, NTP, Pulsecom, SNMP, TABS, TBOS, Teltrac, TL1 |
| Optional Output Protocols : | ASCII, SNMP, TABS, TL1 |
| Monitoring Capacity : | 64 devices/10,000 alarm points |
| T/Mon GFX Users | 2 |
| Maximum Non-T/MonGFX users: | 5 |
| Dimensions: | 1.75" H (1RU) x 17" W x 12 "D (4.45 cm x 43.18 cm x 30.48 cm) |
| Weight | 10 lbs (4.54 Kg) |
| Mounting: | 19" or 23" rack |

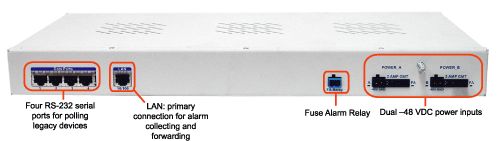

| Power Input: | Dual -48 VDC Dual -24 VDC (optional) |
| Current Draw | 500 mA |
| Fuse: | Two 2 Amp GMT |
| Serial Ports: | 4 RJ45 Connectors |
| Serial Port Interface: | RS-232 / 33.6 Modems vary on configuration |
| LAN Interface: | 10/100 BaseT |
| Processor: | 400 MHz |
| Visual Display: | Front panel LCD |
| Unit Controls: | 4 LCD menu control buttons |
| Hardware Warranty: | 2 years |
| Operating Temperature: | 41-90 degrees F (5 to 35 degrees C) |
| Operating Humidity: | 0%–95% noncondensing |
| Optional Accessory: | T/MON Site Dialer (plus T/MON EXP) |
T/Mon Slim can be used to Mediate SCADA protocols to SNMP
