Combine and Correlate Alarms to Defend Against Complex Threats

Create Custom Alarms Based on Analysis of Multiple Incoming Alarms

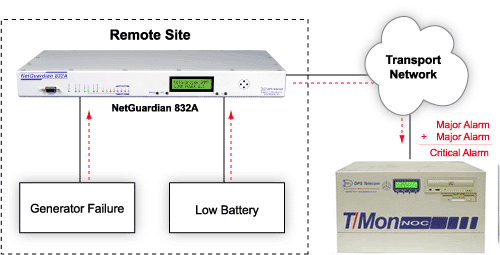

Some alarm events aren't important when they occur in isolation, but are dangerous threats when they happen in conjunction. In the example shown, neither the generator failure nor the low backup battery are critical alarms in themselves, but it is a critical situation if both events happen simultaneously, especially during times of peak network activity.

A high quality master can combine and correlate these events, providing truly intelligent alarm monitoring. Both the generator failure and the low backup battery generate alarms, but the combination of the two generates an alarm of the highest severity level.

Alarms that combine and correlate multiple alarm inputs - called derived alarms - are created through user-defined formulas using simple Boolean logic. You can create derived alarms for many different combinations of events, such as a failed air conditioner AND high temperature, or excessive heat OR excessive cold. You can also create derived alarms for highly complex events, even notifications for when scheduled events, like equipment self-tests, don't happen on time.

Derived alarms are an important component of intelligent alarm monitoring - an alarm management system that clearly distinguishes between nuisance alarms and major threats, letting you focus on keeping your network up and running.

Related Prods Show Me Products That Do This ...


What Do You Want Your Network Alarm Management System To Do?
  1. Monitor Every Part of Your Network
  2. Display Detailed Alarm Information and Instructions to Ensure Rapid and Accurate Response to Network Threats
  3. Analyze and Process Alarm Data
  4. Control Remote Site Equipment
  5. Manage Multiple User Security
  6. Automatically Dispatch Repair Personnel
  7. Provide Redundant Backup Monitoring
  8. Provide Centralized Access Control
What Are Other Companies Doing With Their Network Alarm Management Systems?
  1. New York City Transit's $141 million project to create an ATM/SONET network for the 21st century
  2. In-house monitoring improves reliability at Triangle Communications Inc.
  3. RT Communications Uses the NetGuardian & IAM to Bring Network Monitoring In-House
