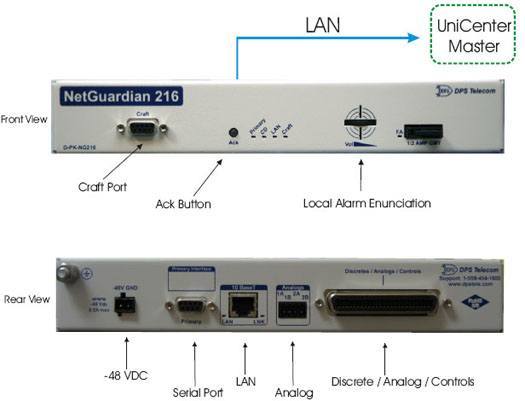

Your UniCenter Master, Collecting Alarms from a NetGuardian 216

Your UniCenter Master, Collecting Alarms from a NetGuardian 216

How This Application Works:

Equipment Used:

NetGuardian 216 UniCenter SNMP Manager

This solution features the NetGuardian 216. The NetGuardian 216 supports a medium discrete point count of 16, along with 2 analog inputs and 2 control outputs. It comes with a Windows Based utility for configuration. It will be able to report alarms and receive controls from your UniCenter SNMP Master.

The -48 VDC NetGuardian 216 offers an easy, cost-effective way to monitor your small sites. The NetGuardian 216 comes equipped with 16 discrete alarm inputs, 2 analog alarm inputs, and 2 control relay outputs. The discrete alarms are items such as door alarms, eq uipment alarms and other ON/OFF events. The discrete alarms are "software reversible" to support both N/O and N/C alarm wiring. The NetGuardian 216's 2 analog inputs can be used for measuring such critical events as temperature, voltage and battery. We also have a line of sensors, which can be used with the NetGuardian 216 and can be included upon your request.

The NetGuardian 216 will provide complete coverage and control of your smaller remote sites with easy installation and configuration. It can report alarms via DCPx over either UDP or TCP to your T/Mon NOC Master Station. The reach-through serial port on the NG216 provides DPS Telecom the ability to access a remote serial device via LAN (a.k.a. terminal server). The NetGuardian 216 also features a real-time clock, so the NetGuardian 216 clock maintains the current date and time during a power failure. Each time an alarm occurs, a time-date stamp will be included in the SNMP/DCPx trap. Also, the NetGuardian 216 comes a with a free, easy to use, Windows based (T/NG216) utility for configuration, monitoring and diagnostic functions.
