Megasys SNMP Manager monitoring a NetGuardian 216

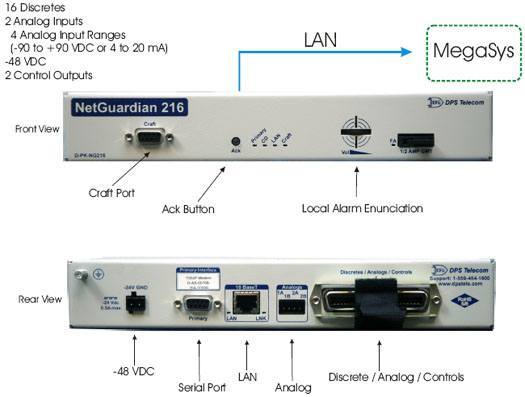

APC InfrastruXure SNMP Manager monitoring the NetGuardian 216

How This Application Works:

Equipment Used:

NetGuardian 216 MegaSys SNMP Manager

Recognizing your need to monitor your smaller sites and have those critical alarms report to your MegaSys SNMP Manager, we have provided a solution for a single NetGuardian 216.

The advantage of the NetGuardian 216 is that it features 2 Analog type of alarms that can be used for Battery Plant Monitoring and/or Temperature. In addition, it features a RS232 Serial Reach Through Port and will be able to act as a mini-terminal server.

We believe that the NetGuardian 216 will be the perfect match for your monitoring needs.

NetGuardian 216 with RS232

The -48 VDC NetGuardian 216 offers an easy, cost-effective way to monitor your small sites. The NetGuardian 216 comes equipped with 16 discrete alarm inputs, 2 analog alarm inputs, and 2 control relay outputs. The discrete alarms are items such as door alarms, equipment alarms and other ON/OFF events. The discrete alarms are "software reversible" to support both N/O and N/C alarm wiring. The NetGuardian 216's 2 analog inputs can be used for measuring such critical events as temperature, voltage and battery. We also have a line of sensors, which can be used with the NetGuardian 216 and can be included upon your request.
