Replace Your Aging Form 4 Equipment With The Pulse Interface Module...

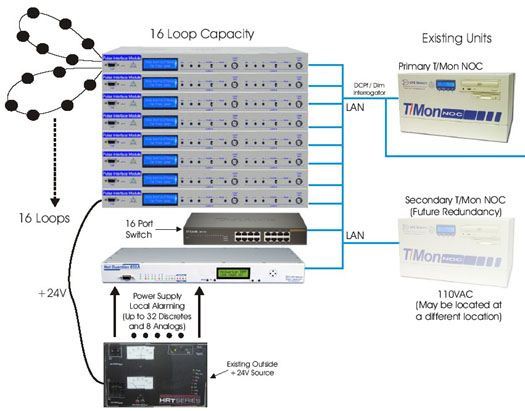

How This Application Works:

Equipment Used:

Pulse Interface Module NetGuardian 832A 16-Port Switch T/Mon NOC Alarm Master

The Pulse Interface Module included in this proposal incorporates the perfect balance of functionality, rugged design and cost efficiency, making it ideal for replacing your aged Form 4 equipment. Each Pulse Interface Module (PIM) supports two Loops. As alarms come in, they are registered and displayed on the front panel LCD showing the box the alarm is coming from. Each loop will be independent from each other as well as each box. This will allow the system to receive simultaneous alarms on each channel. They will be queued up in the PIM and reported over LAN to the existing T/Mon NOC. The T/Mon NOC will be running a new software module that interpret and map each alarm.

The PIM has a front craft port for firmware downloading, an LCD display for viewing alarms or printing the decoding of the lines or the current loop setting. Each of the 2 polling loops on the PIM has it's own set of level controls. A key feature of the PIM is a audible alarm for local annunciation. Combined with the LCD display you you'll have both a audible and visual display of both channels. In addition, the units will operate +24v utilizing the existing power source running the Form 4. On the back panel, each loop will connect to the PIM via a locking connector providing secure connection to the back panel. We recommend a 16 port 10/100 switch where all the PIM's will connect via LAN.
