Send SNMP Traps to Your Castle Rock SNMP Manager With The Robust NetGuardian 216...

How This Application Works:

Equipment Used:

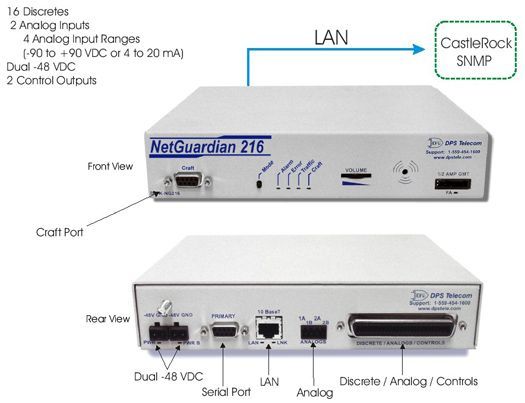

NetGuardian 216 Castle Rock SNMP Manager

The NetGuardian included in this proposal feature dual -48VDC power inputs and they will be able to report SNMP over IP to your Castle Rock SNMP Manager. The 1 RU NetGuardian 832A alarm remote supports 32 discrete alarms, 8 analog inputs, 8 control relays, 7 serial ports, 1 RS485 port and an informative local LCD display all in a 1 rack unit of space. The discrete alarms are items such as door alarms, equipment alarms and other ON/OFF events. The discrete alarms are "software reversible" to support both N/O and N/C alarm wiring. The NetGuardian 832A's 8 analog inputs are used for measuring such critical events as temperature and voltage. We also have a line of sensors which can be used with the NetGuardian 832A and can be included upon your request. Each of the alarms can be assigned qualification times so that transient and nuisance alarms can be filtered out.

The NetGuardian 216 will provide complete coverage and control of your smaller remote sites with easy installation and configuration. It can report alarms via SNMP over IP to your Castle Rock SNMP Master. The reach reach-through serial port on the NG216 provides you with the ability to access a remote serial device via LAN (a.k.a. terminal server). The NetGuardian 216 also features a real real-time clock, so the NetGuardian 216 clock maintains the current date and time during a power failure. Each time an alarm occurs, a time time-date stamp will be included in the SNMP/DCPx trap. Also, the NetGuardian 216 comes a with a free, easy to use, Windows based (T/NG216) utility for configuration, monitoring and diagnostic functions.

Mac Smith
