The NetGuardian 16A: Maximizing Analog Coverage in a Single RU

The NetGuardian 16A maximizes analog capacity in a single RU without

Monitoring a complex process or SCADA operation used to require loads of expensive monitoring equipment and several RUs of space to manage.

In the past, if you needed to monitor voltage, temperature, humidity, fuel levels, pressure, and other non-binary qualities, you needed loads of analog inputs. To get the extra analog inputs you needed, you were required to install multiple RTUs at increased cost and rack space. Often times, increasing your analog capacity crowded out standard monitoring functions too, like discrete inputs and control relays. You had to choose between cost and rack space savings and the monitoring information you needed to monitor and control your process.

But now you can maximize your analog input capacity in a single RU without sacrificing alarm inputs, space, or your operating budget. Meet the NetGuardian 16A.

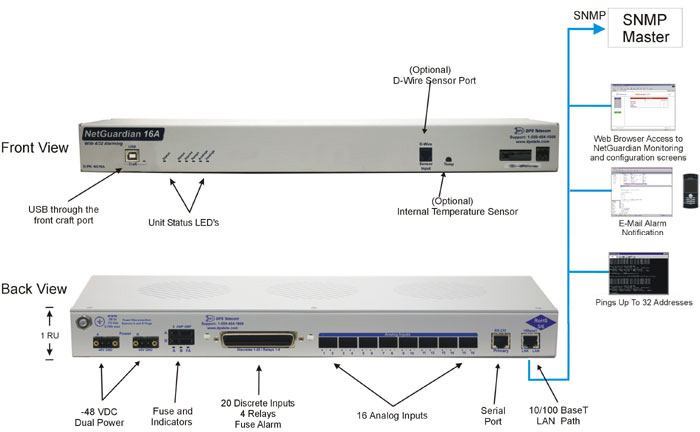

The NetGuardian 16A supports 32 analog sensor inputs (16 analog, 16 D-Wire), and can send SNMP and email notifications for alarms.

The NetGuardian 16A comes standard with 16 user-configurable analog inputs - our highest capacity offering in a single RU. Connect sensors to measure temperature, humidity, wind speed, direction, generator fuel levels, and other quantities without installing multiple RTUs or adding expansions. These 16 inputs are in addition to 2 internal high-impedance analogs for power feed voltage monitoring. The unit also comes with an integrated temperature sensor, freeing up the analog input you would've used to monitor the NetGuardian's local temperature.

In addition to the NetGuardian 16A's standard analog inputs, the unit also includes a D-Wire sensor port, allowing you to connect another 16 sensors to the NetGuardian. D-Wire sensors measure temperature and humidity at present (with more sensor types coming soon), just like your analog sensors, and are connected to and powered by your NetGuardian over simple RJ-11 connections. You can extend up to 16 sensors in a daisy chain up to 800 feet in length from the NetGuardian.

You don't have to sacrifice for your added analog capacity either, because the NetGuardian 16A comes with 20 discrete inputs and 4 control relays. With the NetGuardian 16A, you can monitor all the analogs you need, while still monitoring dry contacts from your equipment and operating controls as necessary.

With the NetGuardian's serial port, you can also provide reach-through access to LAN inaccessible equipment at your site.

You will database and monitor your new NetGuardian 16A through the unit's easy-to-navigate web interface. Through the web interface, you'll configure threshold alarms for all of the unit's analogs, alarm descriptions, and configure what sorts of notifications your NetGuardian will send in the event of alarm conditions.

The NetGuardian 16A can send SNMP traps to your SNMP master station, emails containing full alarm descriptions and point references, and communicate directly with the T/Mon alarm master system. When an alarm condition occurs, your NetGuardian 16A will make sure you hear about it.

For more information about the new NetGuardian 16A, contact DPS Telecom's sales engineers at 1-800-693-0351, or ask Mac a question below.
